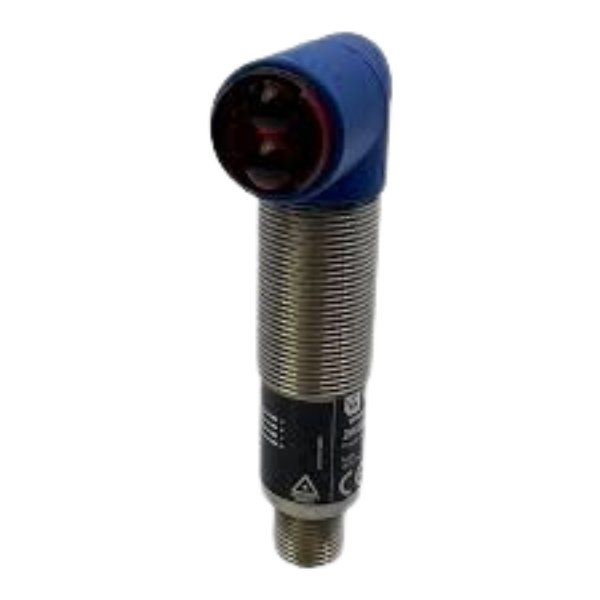

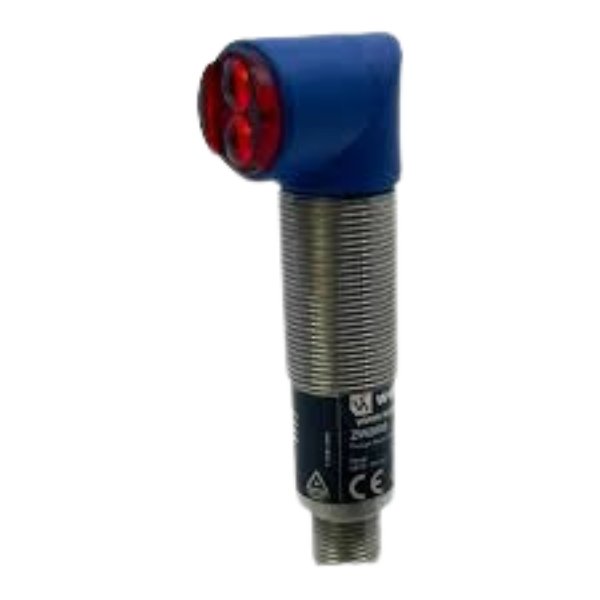

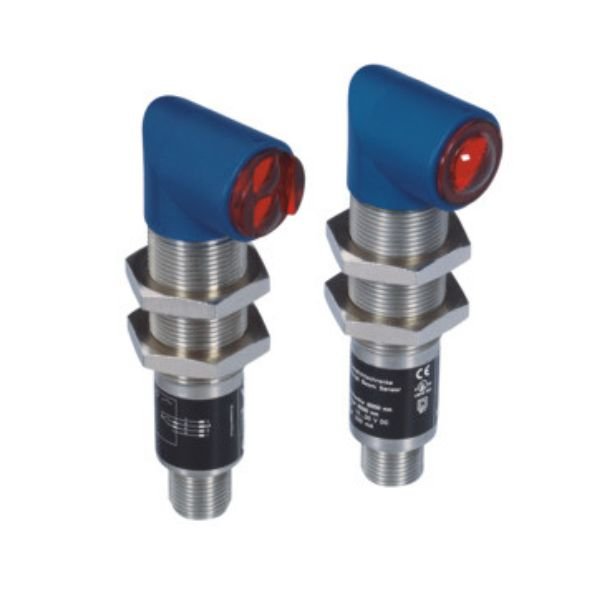

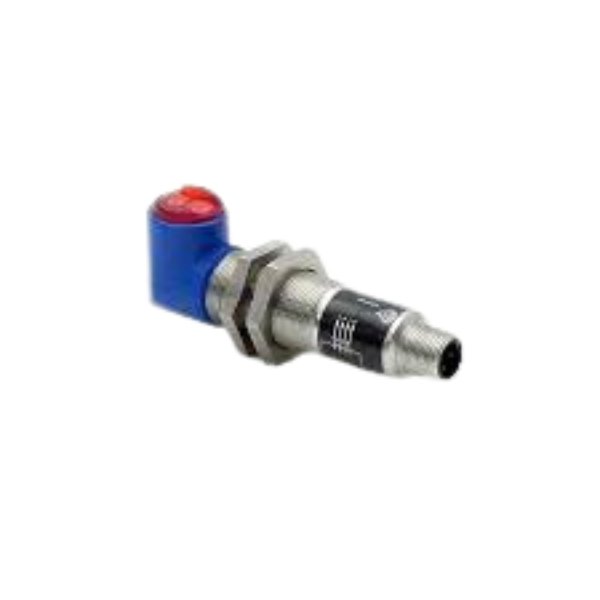

Wenglor ZW2003 Through Beam Sensor

Wenglor ZW2003 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments.

Wenglor ZW2003 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Optical Data Wenglor ZW2003 :

  • Range 20,000 mm
  • Light Source Laser (red)
  • Wavelength 655 nm
  • Service Life (T = +25 °C) 100,000 h
  • Laser Class (EN 60825-1) 2
  • Beam Divergence 10 mrad

Electrical Data Wenglor ZW2003 :

  • Sensor Type Emitter
  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 15 mA
  • Temperature Drift < 10 %
  • Temperature Range -25 … 60 °C
  • Reverse Polarity Protection yes
  • Protection Class III
  • FDA Accession Number 0820360-000
  • Mechanical Data Wenglor ZW2003 :
  • Housing Material Stainless Steel
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Features at a Glance Wenglor ZW2003 :

  • Laser light
  • Test input

Features

  • Laser light
  • Test input

Applications

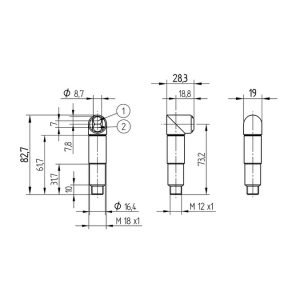

Dimensions specified in mm (1 mm = 0.03937″)
                         1 = no function
2 = Transmitter DiodeB_SYM_SCHLUESSEL_24.pdf Wrench Size

Specifications

Optical Data

Range 20,000 mm
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 2
Beam Divergence 10 mrad

Electrical Data

Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 15 mA
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Reverse Polarity Protection yes
Protection Class III
FDA Accession Number 0820360-000

Mechanical Data

Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Downloads

Datasheet : Wenglor ZW2003 Through Beam Sensor
