Wenglor ZW600PCT3 Through-Beam Sensor

These through-beam sensors are best suited for use in industrial environments.

These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Features

  • Smallest recognizable part: 0,05 mm
  • Range: 60 m
  • Teach-in, external teach-in

Applications

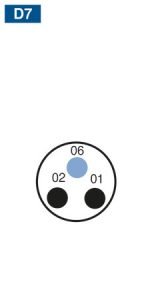

02 = Contamination Warning
01 = Switching Status Indicator
06 = Teach Button

Specifications

Optical Data

Range 60,000 mm
Smallest Recognizable Part 50 µm
Switching Hysteresis  < 15 %
Light Source Laser (red)
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10,000 Lux
Opening Angle 12 °

Electrical Data

Sensor Type Receiver
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 15 mA
Switching Frequency 5 kHz
Response Time 100 µs
On-/Off-Delay (RS-232) 0 … 5 s
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
Switching Output/Switching Current 200 mA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Lockable yes
Teach Mode NT, MT
Protection Class III

Mechanical Data

Setting Method Teach-In
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Safety-relevant Data

MTTFd (EN ISO 13849-1) 2,388.98 a

Output

PNP NC yes
RS-232 with Adapterbox yes

Adjustable parameters

Circuit NC
NC/NO
NO

Downloads

Datasheet : Wenglor ZW600PCT3 Through-Beam Sensor
