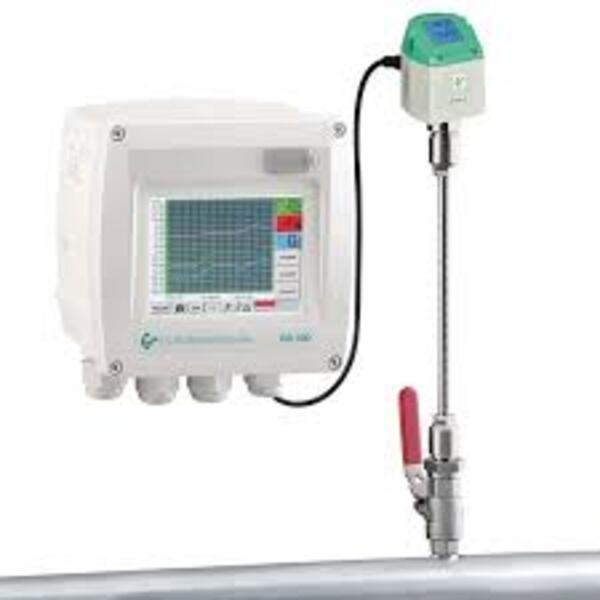

CS Instruments DS 400 Mobile Chart Recorder

CS Instruments DS 400 Mobile Chart Recorder is easy and intuitive in its operation to save you time and costs on the installation. With integrated data logger and up to 4 sensors connectable, including voltage supply for all sensors, for energy analysis, flow measurement, and leakage calculation of compressed air systems.

Application area
Our long-term hands-on experience in measurement and control technology was implemented in the new DS 400. From a recording of the measured data, automatic sensor identification, indication on a big color screen, alerting, storage up to remote read-out via web server, all that is possible with DS 400. By means of the CS-Soft, software alarms can be sent via SMS or e-mail.

The CS Instruments product portfolio includes measuring devices for numerous applications in compressed air and gas measurement. Both small industrial companies and large OEM customers, for example from the automotive industry, rely on our reliable measuring instruments made in Germany and are fully supported by our worldwide dealer and partner network.

Features

Easy and clear layout: Very easy operation via 3.5″ color display with touch panel
Versatile: Up to 4 sensors/meters connectable also third-party sensors/meters including power supply
Reliable: Stores all measured values on a memory card, easy reading out via USB stick possible
Intelligent energy analysis: Daily/weekly/monthly evaluations of mathematic function for internal calculations, e.g. the typical key data of a compressed air plant

Applications

Integrated web server
Mathematic calculation function
Totalizer function

Specifications

Dimensions: 270 x 225 x 156 mm (W x H x D)
Weight: 2.2 kg
Inputs: 2 x 2 sensor inputs for digital or analog sensor signals
Interface: USB (standard), Ethernet (optional)
Power supply: Internal rechargeable Li-Ion batteries, approx 8 h continuous operation, 4 h charging time
Options:
Integrated data logger: 100 million measured values start/stop time, measuring rate freely
adjustable
2 additional sensor inputs: For connection of pressure sensors, temperature sensors, clamp-on ammeters, third-party sensors with 4…20 mA, 0 to 10 V, Pt 100,
Pt 1000
