Daiwa Dengyo SPT-11-CSA Safety Plug has a shape like a connector but has a function as a safety. The workings of the electrical safety plug. Safety equipment that is attached to safety doors and machine tools to prevent accidents caused by accidentally turning on the power.

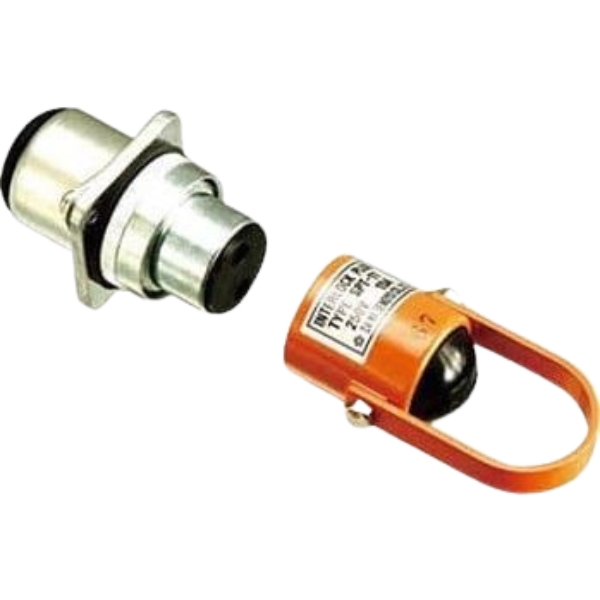

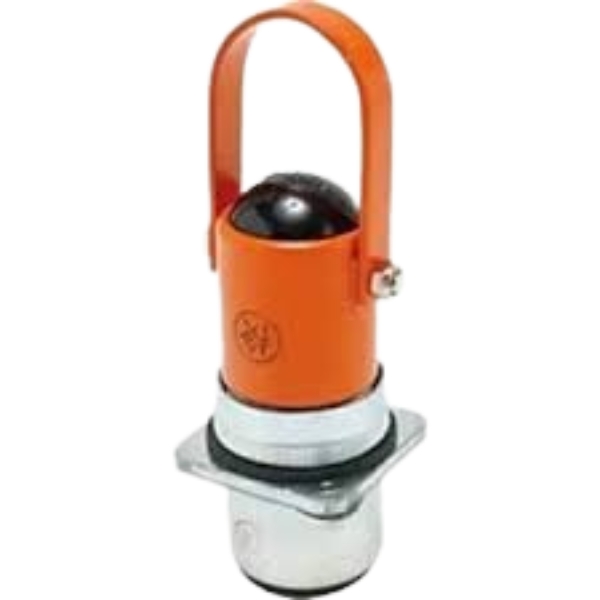

Daiwa Dengyo SPT-11-CSA Safety Plug
Daiwa Dengyo SPT-11-CSA Safety Plug has a shape like a connector but has a function as a safety.
- Forced separation. A safe structure that allows you to visually confirm that a part of the circuit has been removed.
- Easy and reliable operability just by inserting and removing. Even in the unlikely event of an emergency, the machine can be stopped by unplugging it instantly.
- Simple structure. A product that pursues high reliability by eliminating complicated contact points and operating structures as much as possible.
The size required for interlocking the door is secured, and at the same time, it is not bulky when carried and is not easily lost.
- This product is used to fix the interlock plug body and safety fence, etc. (WSP-280 L-A)
- Ideal for safety fence doors, doors and operation panels for machine tools, industrial machines, etc.
- Ideal for aisle doors, operation panels of self-propelled/automated warehouse, and other general machine and equipment.
- CSA standard certified product

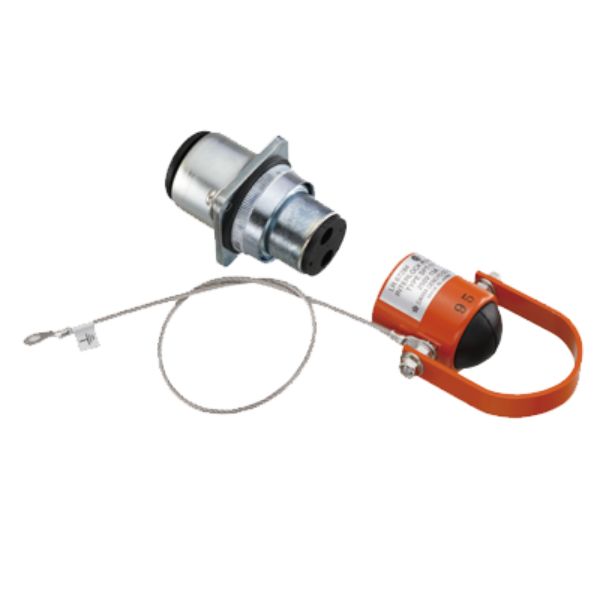

- It is equipped with grounding wire on the handle
Daiwa Dengyo have many safety plug and accessory for door safety switch and the application to human and machine safety switches.
Safety device that prevents accidents caused by improperly supplied power to safety doors and manufacturing machinery
Safety equipment that is attached to safety doors and machine tools to prevent accidents caused by accidentally turning on the power.

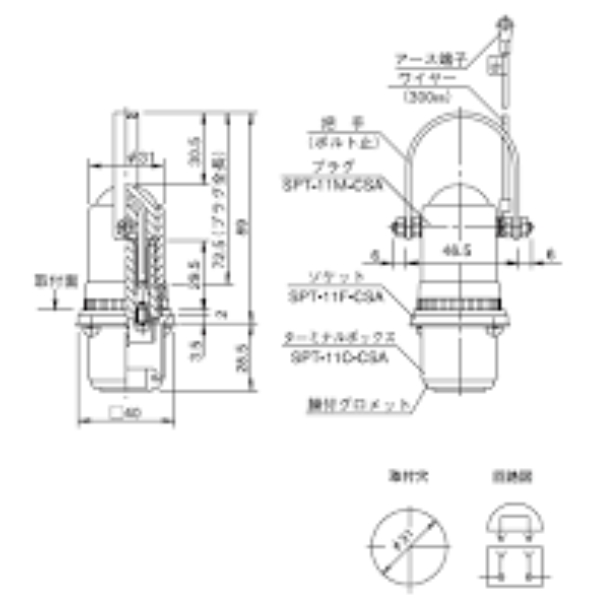

SPT series standard.
As with the ø30 series push button switches, it is easy to install by using a tightening ring.
|Rated Voltage||250 V,15 A (Min 24 V, 5 mA)|
|Handle mounting||Bolt, nut|
|Wiring terminal||2 X M4|
|Mounting plate thickness||Up to 6 mm|
|Certification standard||RoHS 10|
