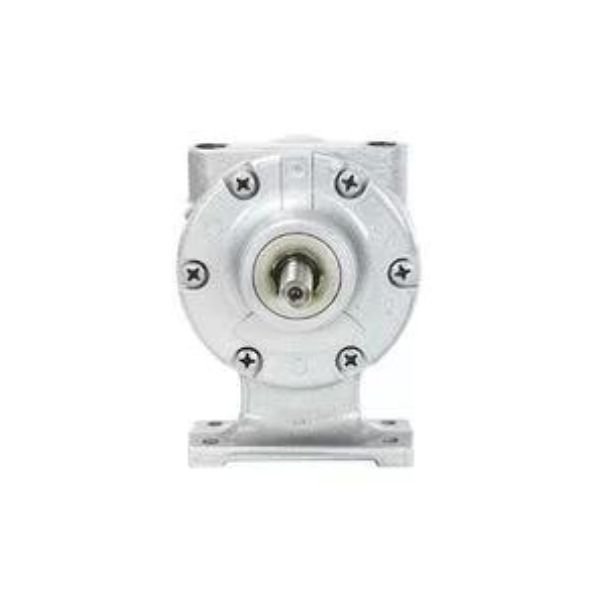

Gast 2AM-FCW-13 Air Motor

The compact and portable 2AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Features

  • Foot mounting
  • Any plane operation
  • Metal muffler AC980 adds 2″ height when installed
  • II 2 GD c T4

Applications

Recommended

  • Filter AH103F
  • Regulator AH104R
  • Gauge AA806
  • Lubricator AH105L
  • Oil AD220 – 1 quart (.94 litres)
  • Repair kit K202 (Single Rotation)

Specifications

  • Max Air Consumption: 30 cfm ( 50.97 m3h )
  • Max Power: 0.95 hp ( 0.71 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 76 dB(A)
  • Max Speed: 3000 rpm
  • Max Torque: 28 in-lb ( 3.16 N m )
  • Mount: FOOT
  • Output Shaft Type: Flat
  • Port Size and Type: 1/4″ NPT
  • Regulatory Approval: CE, ATEX
  • Rotation: Clockwise
  • Shaft Size: 0.5 in ( 12.7 mm )
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 17.5 in-lb ( 1.98 N m )
  • Torque Max Speed: 19.5 in-lb ( 2.2 N m )
  • Vanes: 4
  • Weight: 4.4 lbs ( 2 kg )

Downloads

Datasheet : Gast 2AM-FCW-13 Air Motor
