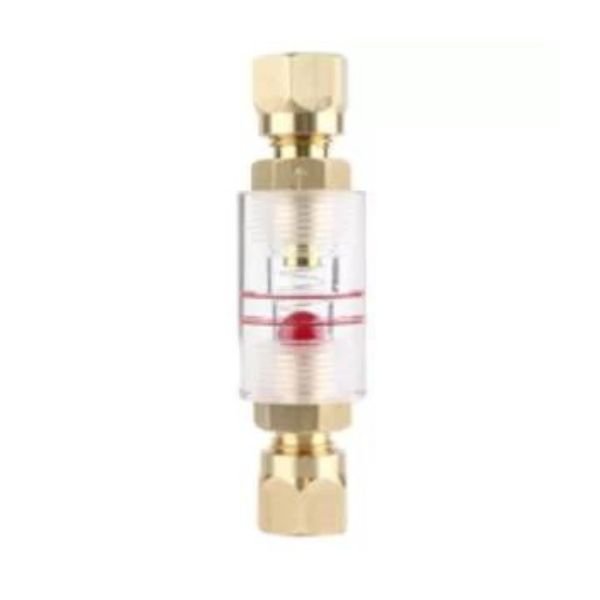

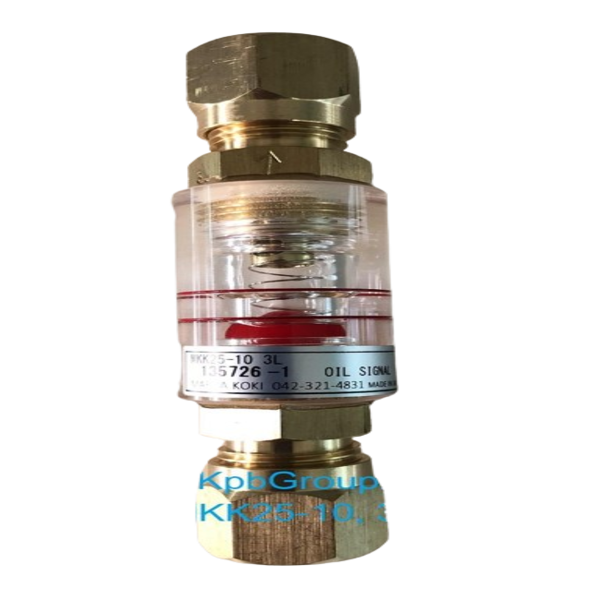

Maeda Koki MKK type OIL SIGNAL Flow Indicator

Maeda Koki MKK type OIL SIGNAL confirms the flow of the oil by viewing the moving ball with a zippered sleeve for copper pipe conclusion. It can be for the exclusive use of the copper pipe.

Maeda Koki MKK type OIL SIGNAL Flow Indicator

Maeda Koki MKK type OIL SIGNAL confirms the flow of the oil by viewing the moving ball with a zippered sleeve for copper pipe conclusion. It can be for the exclusive use of the copper pipe.

Features

  • Type for the exclusive use of the copper pipe
    It is a rheoscope confirming the flow of the oil.
    In the case of a slowdown machine, please choose MKK25-8-P.

Applications

MKK oil signal is a flow indicator, flow switch, and flow control depending on the type. It can confirm a flow of the oil by viewing by the movement of the ball. With zipper sleeve for the copper pipe conclusion.

Specifications

Fluid Oil
Connection The reference mentioned above
Heat-resistant temperature A maximum of 80 degrees Celsius
Withstand pressure 1MPa
Materials Transparent pipe Acrylic
Coupling C3604 (brass)
 Cap nut C3604 (brass)
Spring SUS304
Nylon ball Nylon 66
 Zipper sleeve Cu

Downloads

Datasheet: Maeda Koki MKK type OIL SIGNAL – Flow Indicator
