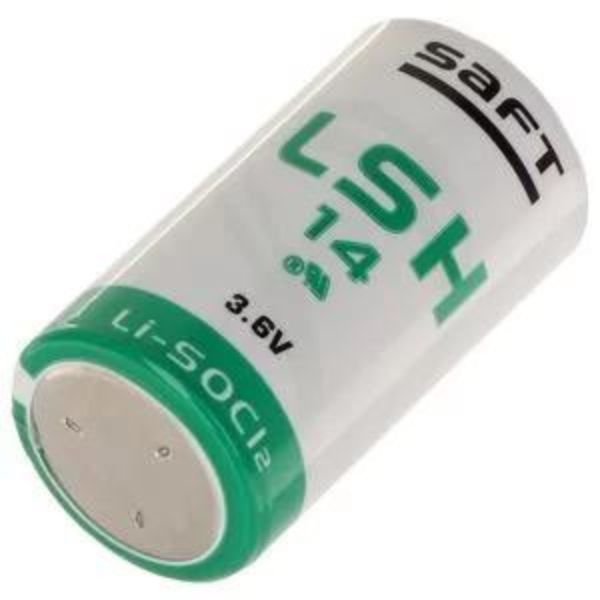

Saft LSH 14 Lithium Battery

Saft LSH 14 Lithium Battery Cell is ideally suited for long-term applications Low self-discharge rate (less than 3 % after 1 year of storage at + 20°C), and Features low base currents and periodic pulses.

Saft LSH 14 Lithium Battery is ideally suited for long-life applications  (typically from 5 to 10 years), featuring low base currents and periodic high current pulses. Saft has already delivered batteries with 20+ year life expectancies to key manufacturers and utilities. Our long-term customers have been able to verify the reliability of our batteries through severe qualification processes, endurance testing, and of course our products’ proven track records in the field. High-quality materials, components, and methods, such as high-end glass-to-metal seals for full hermeticity; laser welding of enclosures; and the best quality materials and processes to prevent corrosion, avoid cell internal short circuits and ensure the highest capacity retention across a long life.

Designed to meet all major quality, safety, and environmental standards

  • Safety: UL 1642 [File MH12609] IEC 60086-4 [cell]
  • Transport: UN 3090, 3091 & 3499 for components [assembly under testing!
  • Compliant to ATEX: IEC 60079-11 part 10.5 icell
  • Quality: 150 9001, Saft World Class continuous program
  • Environment: ISO 14001, RoHS and REACH compliant

Features

  •  High voltage response, stable during most of the lifetime of the application
  • High drain/pulse capability
  • Wide operating temperature range (- 60°C/85°C)
  • Easy integration in compact system
  • Low self-discharge rate (less than 3 % after 1 year of storage
    at + 20°C)
  • Stainless steel container Hermetic glass-to-metal sealing
  • Built-in safety vent
  • Finish with 5 A fuse
  • Non-flammable electrolyte
  • Underwriters Laboratories (UL) Component Recognition (File Number MH 12609)
  • Compliant with IEC 60086-4
  • Restricted for transport (Class 9)

Applications

  • Radiocommunication and other military applications
  • Alarms and security systems
  • Beacons and emergency location transmitters
  • GPS
  • Metering systems
  • Sonobuoys
  • Automotive telematics
  • Pipeline inspection

Specifications

Cell Size C
Cell Construction Spiral
Nominal Voltage 3.6 V
Nominal Capacity 5.8 Ah
Max. Continuous Current 1.3 A
Max. Pulse Discharge Rate 2.0 A
Max. Outside Diameter 26.0 mm
Max. Height 50.4 mm
Typical Weight 51 g
Operating Temperature Range -60/+85°C

Downloads

Datasheet: Saft LSH 14 Lithium Battery
