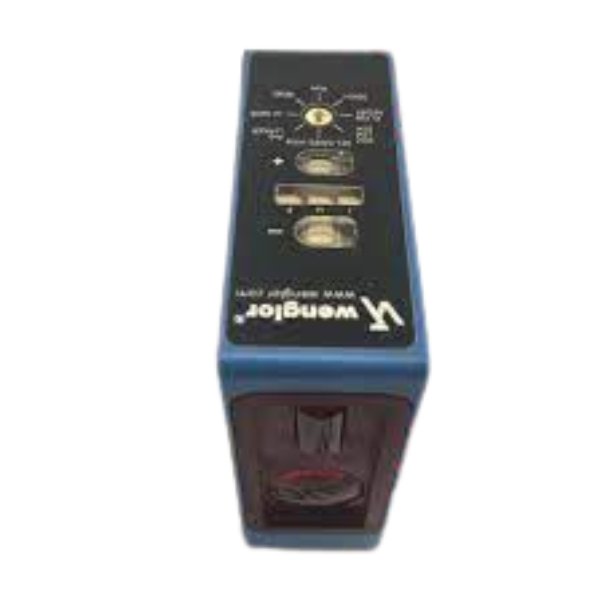

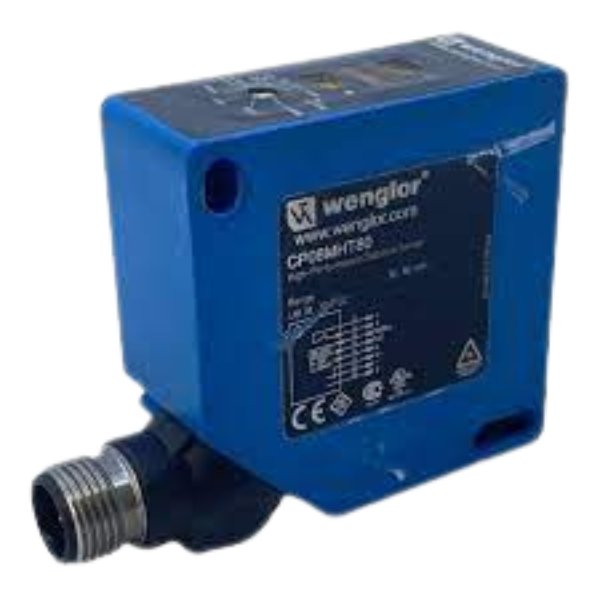

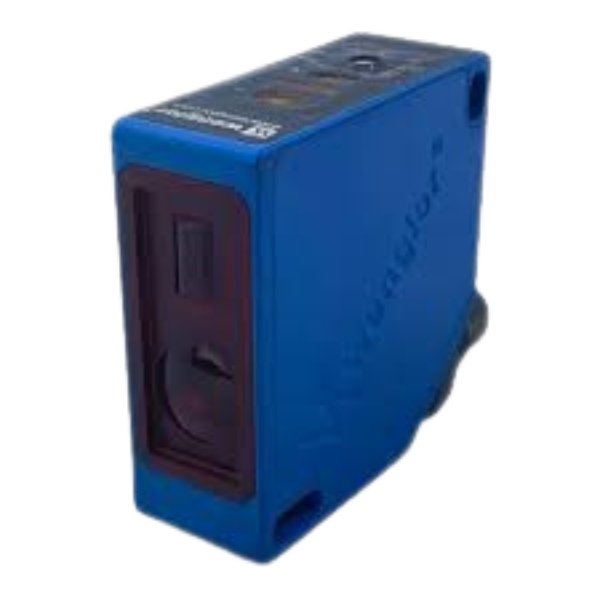

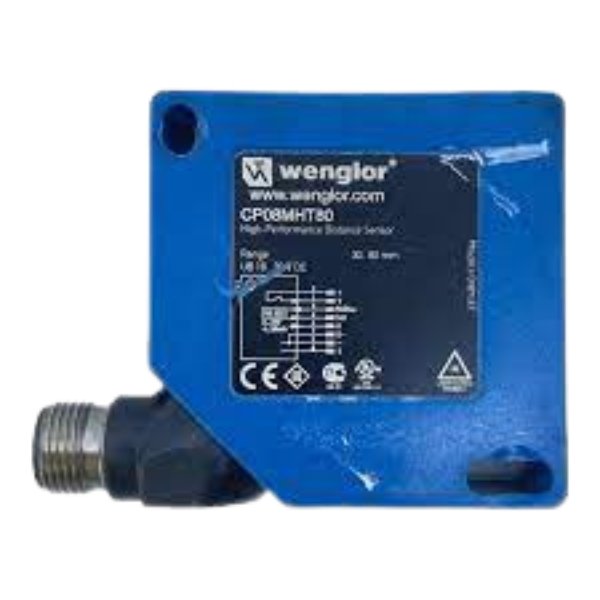

Wenglor CP08MHT80 Sensor High Precision

Wenglor CP08MHT80 Sensor High Precision works with a high-resolution CMOS line and DSP technology and determines distance using angular measurement. As a result, material, color, and brightness-related measurement differences are virtually eliminated. The integrated analog output can be configured for voltage 0…10 V (10…0 V) or current 4…20 mA (20…4 mA).

Features at a Glance

Response time: < 660 µs (speed-mode)
High resolution: 8 µm (resolution mode)
Linearity: 0,1 % (resolution mode)
Zoom function
Measured value independent of material, color, and brightness

Electrical Data
Supply Voltage 18 … 30 V DC
Current Consumption (Ub = 24 V) < 80 mA
Measuring Rate 1,500 /s
Measuring Rate (Resolution-Mode) 600 /s
Response Time 660 µs
Response Time (Resolution Mode) < 1,660 µs
Temperature Drift < 5 µm/K
Temperature Range -25 … 50 °C
Analog Output 0…10 V
Load Current Voltage Output < 1 mA
Current Output Load Resistance < 500 Ohm
Interface RS-232
Baud Rate 38,400 Bd
Protection Class III
FDA Accession Number 0820588-000

Features

Response time: < 660 µs (speed-mode)
High resolution: 8 µm (resolution-mode)
Linearity: 0,1 % (resolution-mode)
Zoom function
Measured value independent of material, color and brightness

Applications

Measuring Blocks of Cheese With High-Precision Laser Distance Sensors for Controlling Cutting Machines

In the food industry, it is important to accurately measure blocks of cheese on conveyors before cutting. This enables the amount of waste to be significantly reduced when the blocks are subsequently cut. To this end, two high-precision laser distance sensors are installed above and one on each side. The analog measurements can be used to calculate the volume of the cheese and thus determine the ideal frequency of the cutting knife. To avoid keeping the measuring sensors permanently in operation, a retro-reflex sensor is installed upstream as a trigger – this saves electricity and therefore costs.

High-Precision Laser Distance Sensors

High-precision laser distance sensors work according to the principle of angle measurement, whereby color, shape and object surface do not influence the measurement. Depending on the setting, they can be operated at very high speed or resolution. The measuring range can be selected individually within the sensor’s working range.
