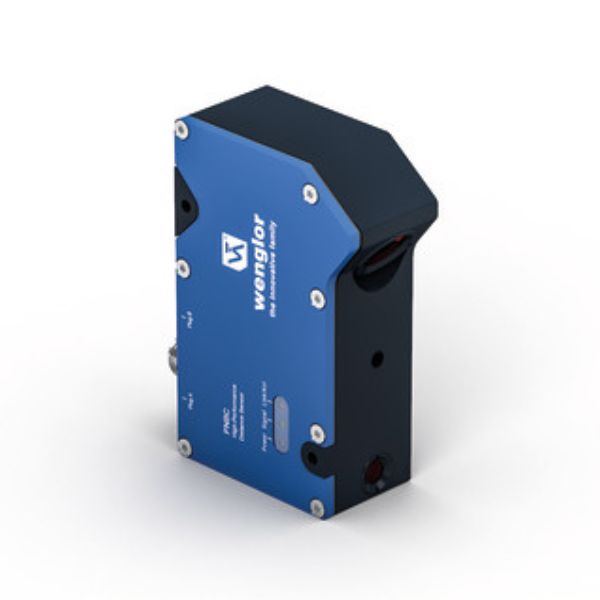

Wenglor PNBC005 Laser Distance Sensor High Precision from the PNBC range work with a high-resolution CMOS line array and determine the distance to the object by means of angular measurement. Top-quality optics permit measured values with 16-bit resolution. Values are read out simultaneously via the analog output and the interface. Up to 4 switching outputs can be taught externally. An incremental encoder input rounds the product out.
Features at a Glance
- Highly precise measurement with a maximum linearity deviation of 0.05%
- Constant, surface-independent measured values
- Thermally stable measured values without any warm-up phase
- Industry 4.0 compatible thanks to Industrial Ethernet
Optical Data
- Working Range: 90 … 190 mm
- Measuring Range: 100 mm
- Resolution: 1.5 µm
- Linearity Deviation: 50 µm
- Light Source: Laser (red)
- Wavelength: 658 nm
- Service Life (T = +25 °C): 100,000 h
- Laser Class (EN 60825-1): 2
- Max. Ambient Light: 10,000 Lux
- Light Spot Diameter: < 0.75 mm
