Sale!

Original price was: Rp 17.850.000.Current price is: Rp 17.750.000.

Already Obsoleted Replaced by IP54 M1000-24-10C

Minimum Order: 1 units

Lead Time: 6 weeks

Product Note:

No product notes available.

Available on backorder

Description

Description of Already Obsoleted Replaced by IP54 M1000-24-10C

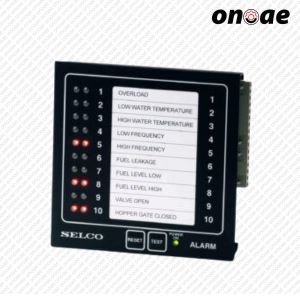

The Selco M1000-24-10C is a 10-channel monitor alarm device designed to monitor the status of potential free contacts (NO or NC) in industrial and marine systems. The device provides visual indication via LEDs and collector open outputs for each channel, and is equipped with an internal siren relay for audible alarms. With an RS485 communication interface that supports the MODBUS-RTU protocol, the M1000-24-10C allows for easy integration with control and SCADA systems.

Features

  • 10 Digital Input Channels: Supports NO and NC contacts with LED indication per channel.
  • 10 Collector Open Outputs: Allows external control and remote indication.
  • Internal Siren Relay: Activates when a new alarm is detected, providing an audible warning.
  • First Alarm Indication: Provides clear identification for the first alarm to occur.
  • Programmable Reset Sequence: Allows configuration of reset as per system requirement.
  • RS485 MODBUS-RTU Communication: Eases integration with control and SCADA systems.
  • Configuration via RS232 or DIP Switch: Flexibility in device parameter settings.
  • Environmental Resistant Design: IP54 protection on the front, suitable for industrial and marine environments.
  • Marine Certification: Approved by various marine classification bodies, ensuring reliability in maritime applications.

Applications

The Selco M1000-24-10C is suitable for a variety of applications, including:

  • Marine Industry: Alarm monitoring on ships and offshore platforms.
  • Power Generation: Alarm system monitoring in power plants.
  • Process Industries: Condition monitoring of industrial processes and equipment.
  • SCADA systems: Integration with remote control and surveillance systems.

Specifications

  • Model: M1000-24-10C
  • Supply Voltage: 12-24 VDC
  • Power Consumption: Max 5 W
  • Number of Inputs: 10 channels (NO/NC)
  • Number of Outputs: 10 collector open outputs (150 mA max)
  • Siren Relay: 220 VAC/2 A or 30 VDC/2 A
  • Communication Interface: RS232, RS485 (MODBUS-RTU)
  • Operating Temperature: -10°C to +70°C
  • Dimensions: 144 x 144 x 35 mm
  • Front Protection: IP54
  • Certification: Approved for marine use
