Description

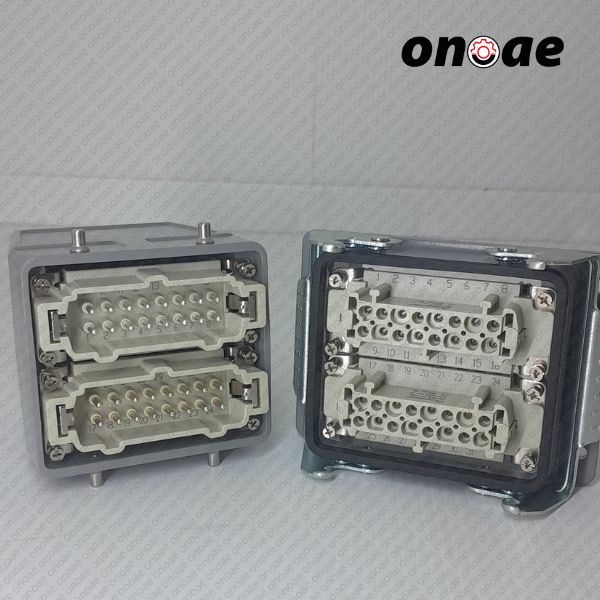

Degson DE032 1 Set Top Entry Heavy Duty Connector
Heavy Duty Connectors (HDC) are industrial connectors designed to transmit power, data and signal in the toughest of conditions. In environments with vibrations, risk of dust, temperature challenges and mechanical impact, our HDC connectors provide a reliable solution with solid aluminum or thermoplastic hoods and housings with protection degree from IP65 up to IP69k.
Degson DE032 1 Set Top Entry Heavy Duty Connector
- HOOD :Standard or high construction, top or side cable entry, 2 or 4 locking point, 1 or 2 locking levers
- Insert :Heavy-duty insert,Number of contacts:32+PE,Dimension:16A,Rated voltage :500V,Rated current:16A,Male insert,Screw connector
- Housing :Protection covers/code and guide pins for coding/tools
Features
Degson DE032 1 Set Side Entry Heavy Duty Connector Features
Features of INSERT Male and FEMALE DE-032-:
- Model: Insert Male and Female
- Number of contacts: 32
- Rated current: 16A
- Rated voltage: 500V
- Pollution degree: 3
- Material body: Polycarbonate
- Material contact: Copper alloy
- Limiting temperatures: -40 ℃ ~+125 ℃+
Features of Degson DE032 Hood Top Entry Heavy Duty Controller
- RoHS : conform
- Material(upper housing/base) spray
- Color (upper housing/base) Grey(RAL 7037)
- Limiting temperatures : -40℃~+125℃
- IP class : IP65
Features Of Housing 2 Lever
- Metal or high-strength plastic material, resistant to high-strength mechanical shock;
- Various installation methods and outlet directions to meet on-site wiring requirements;
- Snap-in combination structure, dustproof, waterproof, easy operation;
Applications
HEAVY-DUTY CONNECTOR APPLICATIONS:
For mechanical and electrical protection in the production machinery, automotive, and energy generation industries, as well as protection in process and control applications.
Specifications
SPECIFICATION OF EACH ITEM Degson DE032 1 Set Side Entry Heavy Duty Connector

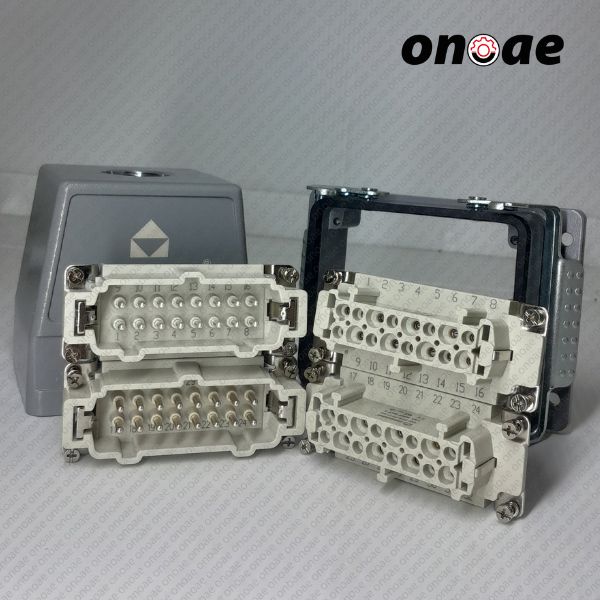

INSERT MALE 32 PIN:
- Type Screw terminal
- Wire gauge: 0.75-2.5 mm2
- AWG: 18-14
- Tightening torque: 0.5Nm
- Stripping length: 7mm
- Model: Insert Male (Laki-laki)
- Number of contacts: 32
- Rated current: 16A
- Rated voltage: 500V
- Pollution degree: 3
- Material body: Polycarbonate
- Material contact: Copper alloy
INSERT FEMALE 32 PIN:
- Type Screw terminal
- Wire gauge: 0.75-2.5 mm2
- AWG: 18-14
- Tightening torque: 0.5Nm
- Stripping length: 7mm
- Model: Insert Female (Perempuan)
- Number of contacts: 32
- Rated current: 16A
- Rated voltage: 500V
- Pollution degree: 3
- Material body: Polycarbonate
- Material contact: Copper alloy
HOUSING 2 LEVER 32PIN:
- Model: Housing 2 Lever
- Number of contacts: 32 PIN
- Material: Aluminium die-cast
- Colour: Grey(RAL7037)
- Limiting tempertures: -40~+125℃
- Degree of protection: IP65
- Locking element: 2 Lever type
- Material: Metal zinc-plated
- Hoods / Housings: seal NBR

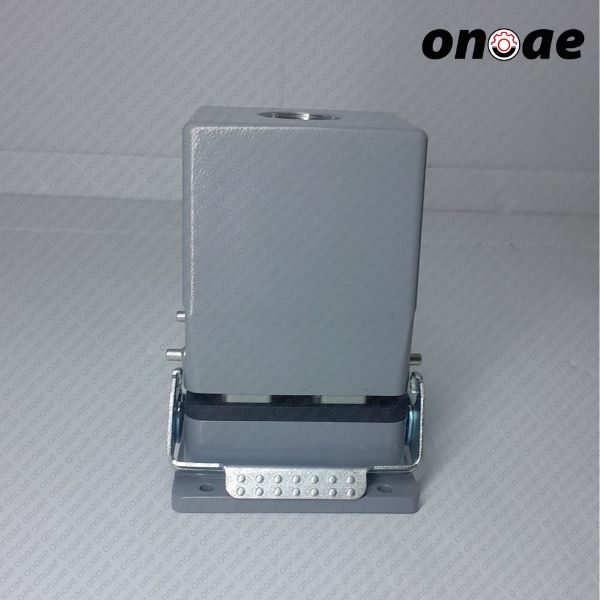

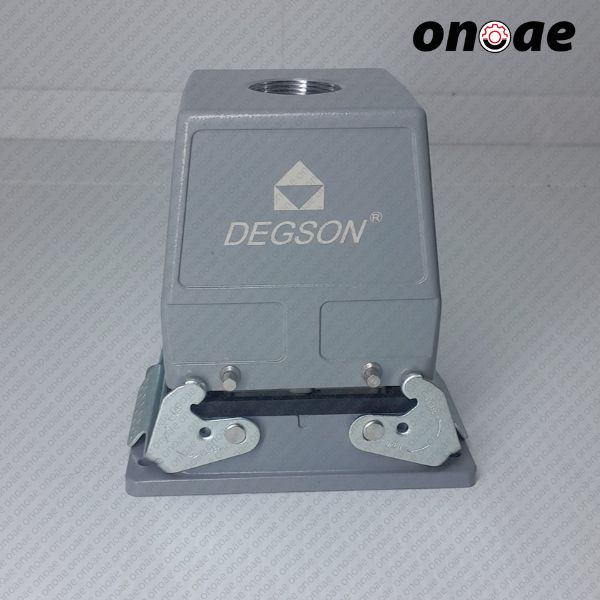

HOOD TOP ENTRY 32 PIN:
- Model: Hood Side Entry (lubang atas)
- Tipe: DE-032-M32
- Number of contacts: 32 PIN
- Material: Aluminium die-cast
- Colour: Grey(RAL7037)
- Limiting tempertures: -40~+125℃
- Degree of protection: IP65
- Locking element: 1 Lever type
- Material: Metal zinc-plated
- Hoods / Housings: seal NB
