EGE Ultrasonic Sensors

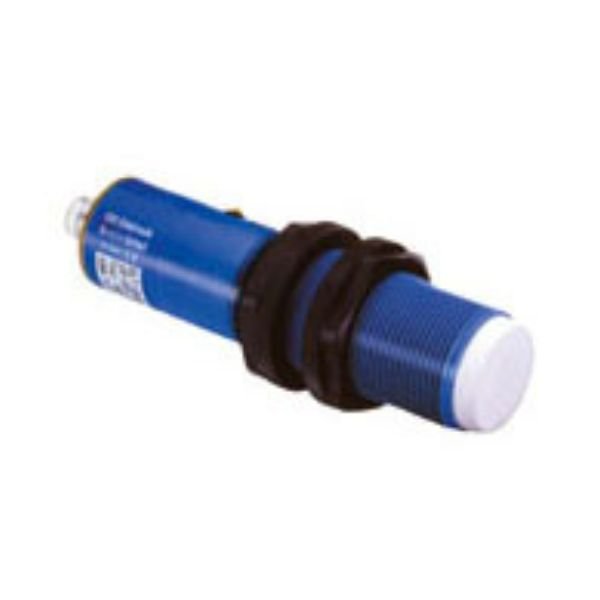

EGE ultrasonic sensors for contactless measuring of distances are robust in design and waterproof (IP 67.) They are available for switching points from 10 to 3500 mm and are programmable as well.

Ultrasonic sensors are transmitting and receive ultrasonic signals. These signals have a frequency range from 65 kHz up to 300 kHz. Ultrasonic sensors can be used for several different applications, for example:

Diameter detection
Loop tension
Height detection
Level measuring
Counting

A short ultrasonic pulse is transmitted at the time 0, reflected by an object. The sensor receives this signal and converts it to an electric signal. The next pulse can be transmitted when the echo is faded away. This time period is called the cycle period.

Sensors with:

Long sensing ranges have a long cycle
periods and slow reaction time.
Short sensing ranges have short
cycle periods and fast reaction
times.

Features

Switching distance up to 6000 mm
Level monitoring
watertight housing
teach-in functions

Applications

Non-contact detection of:

distances
presence
level
diameter
position

Independent of :

material
color
light
smoke
dust

Specifications

Measurement range: 25 .. 200 mm / 100 .. 800 mm / 80 .. 1600 mm / 300 .. 3000 mm
Operating temperature: -15 .. 70 ° C
Output Function: PNP NO / NC
Setting the measuring range: potentiometer on the body
Power supply: 10 .. 30 V DC
