Name: Fluidwel N410-P-CH-HB-IR-OR-PG-XX-ZB | onoae
SKU: FLDWLL N410-P-CH-HB-IR-OR-PG-XX-ZB
Price: 32686000 IDR
Availability: BackOrder

Description

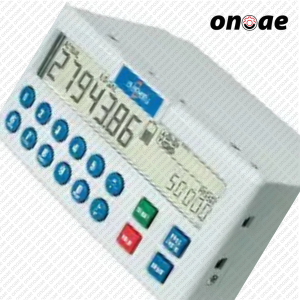

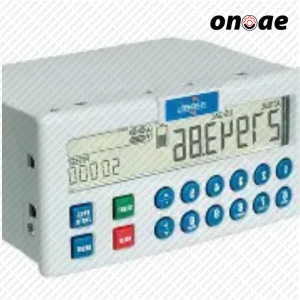

Fluidwel N410-P-CH-HB-IR-OR-PG-XX-ZB

Focussed on your convenience. Multiple batch info displayed at a glance and easy to operate with the numerical keypad.

The N410 batch controller distinguishes itself by its user-friendly features: Numerical keypad, clear programming menu structure, easy to read display and simple mounting enclosure. The numerical keypad allows simple and fast changing of the preset batch quantity. Fluidwell stands for simplicity and reliability and it is now available in this customer focused and application driven batch controller.

Features

Fluidwel N410-P-CH-HB-IR-OR-PG-XX-ZB Features :

Full numerical keypad.
Shows actual value, preset value, batch process indication, relay status indication and measuring units simultaneously.
Five control inputs for remote START, HOLD, RESUME, keypad lock and external alarm.
7 large digits (14mm, 0.56″) for actual value, flow rate and total.
10 smaller digits (8mm, 0.3″) for preset value, accumulated total and batch count.
Selectable on-screen engineering units for volumetric or mass: L, m³, USGAL, IGAL, ft³, bbl, kg, Ton, lb.
The batch process can be visualized with the tank fill/spill symbol. This graphical representation can be enabled or disabled. When the batch overfills the preset quantity by 2.5% the graph will show two overspill arrows indicating this condition.
Easy operation to enter a batch value and to control the process.
Easy configuration with clear alphanumerical display.
No-flow monitoring.
Automatic overrun correction.
Bright LED backlight.
Auto backup of settings and running totals in EEPROM memory.
Ambient temperature: -20°C to +60°C (-4°F to 140°F).
Aluminum IP67 (NEMA Type4X) DIN front panel of 144 x 72mm (5.67” x 2.83”).
A just-in-time back-up stores the latest batch information in case of a power failure.
Various accessories are available for this product.

Applications

Fluidwel N410-P-CH-HB-IR-OR-PG-XX-ZB Applications :

Accurate batching or filling of liquids where the batch size changes frequently.
The N-Series offers the perfect solution for batch control applications where a user-friendly instrument is required. Whether you focus on its clear display information, the very easy to operate numerical keypad or the easy menu-driven configuration structure, you’ve got to have a Fluidwell.

Specifications

Fluidwel N410-P-CH-HB-IR-OR-PG-XX-ZB Specifications :

Pulse type inputs: Reed-switch, open collector, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.
Remote control: start / hold / resume/ keypad lock / external alarm.
24V DC.
110 – 230V AC.
Function: All process data and settings can be read and modified through the communication link.
Protocol: Modbus RTU.
Interface: RS232 or RS485 2-wire.
