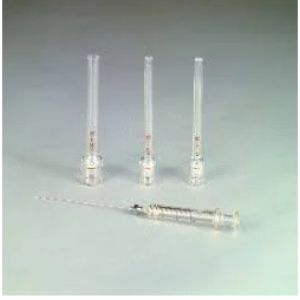

Gastec P-164-H Permeation Tube Propylene Oxide

Gastec P-164-H Permeation Tube Propylene Oxide Generating calibration gas with a permeation tube. with Concentration range 0.3 – 15 ppm.

WARNING:

Use only Gastec detector tube in a Gastec Pump.
Do not interchange or use non-Gastec parts of components in Gastec’s detector tube and pump system.
The use of non-Gastec parts of component in Gastec’s detector tube and pump system, or use of a non-Gastec detector tube with a Gastec pump, or use of a Gastec detector tube with a non-Gastec pump may result in property damage, serious bodily injury, and death, voids all warranties, and voids all performance and data accuracy guarantees.

Application of the tube:

Use this tube for detecting Hydrogen fluoride in the air or in industrial areas and for determining the environmental atmospheric condition.

Specifications

Parameter	Specification
Manufacturer	Gastec Corporation
Part Number / Model	P-164-H / P164H
Target Chemical Vapor	Propylene Oxide / 1,2-Epoxypropane ( $text{C}_3text{H}_6text{O}$ )
Permeation Membrane	Fluoropolymer (FEP/Teflon) capillary reservoir
Certified Operating Temp	$30.0^circtext{C to }40.0^circtext{C}$ (specified on individual calibration certificate)
Primary Output Range	Generates $0.2text{ to }50.0text{ ppm}$ (dependent on carrier gas flow rate)
Expected Service Life	6 to 12 months (determined by operating temperature and initial fill mass)
Compatible Equipment	Gastec PD-1B / PD-1C Gas Generator series, standard dynamic gas diluters

Features

Concentration range 0.3 – 15 ppm

Applications

Chemical & Polyurethane Manufacturing Safety: Calibrating photoionization (PID), gas chromatograph (GC), and flame ionization (FID) instruments used for workplace air monitoring in polyol production, plastics manufacturing, and chemical synthesis plants.
Colorimetric Detector Tube Validation: Laboratory verification and accuracy auditing of Gastec Propylene Oxide detector tubes (such as Gastec 164 series).
Industrial Hygiene Audits: Generating low-ppm span standards to verify leak detection equipment and ambient monitoring alarms for toxic, flammable epoxide vapors.
