onoae

Sale!

Original price was: Rp 20.000.000.Current price is: Rp 15.353.000.

Integral Mount Paddlewheel Flow Sensor 198864504 Signet Type 515

Lead Time: 6 weeks

Product Note:

No product notes available.

Available on backorder

Description

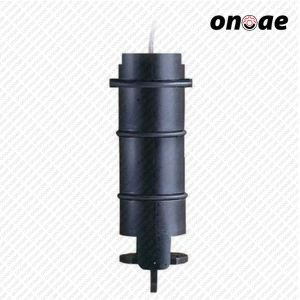

Integral Mount Paddlewheel Flow Sensor 198864504 Signet Type 515

The Simple to install with time-honored reliable performance, the GF Signet 515 Rotor-X paddle wheel flow sensors are highly repeatable and rugged sensors that offer exceptional value with little or no maintenance.

The output signal of the GF Signet 515 Rotor-X paddle wheel flow sensor is a sinusoidal frequency capable of driving a self-powered flow monitor such as the GF Signet 8150 Flow Totalizer.
The GF Signet 515 Rotor-X paddle wheel flow sensors have a wide dynamic flow range of 0.3 to 6m/s (1 to 20 ft/s), which allows the sensor to measure liquid flow rates in full pipes and can be used in low pressure systems.

The GF Signet 515 Rotor-X paddle wheel flow sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations.

The many material choices including PP, PVDF, and Tefzel make this model highly versatile and chemically compatible to many liquid process solutions. GF Signet 515 Rotor-X paddle wheel flow sensors can be installed in up to DN900 (36 in.) pipes using GF Signet’s comprehensive line of custom fittings. These custom fittings, which include tees, saddles, and weldolets, set the sensor to the proper insertion depth into the process flow.

GF Signet 515 Rotor-X paddle wheel flow sensors are also offered in configurations for wet-tap and intrinsically safe installation requirements.

Specifications

  • PN: 3-8510-P0
  • 198864504 Signet Type 515 Rotor-X
  • 8510 Integral Mount Paddlewheel Flow
  • Sensor, Self-Powered, Black PVDF
  • Rotor, PP Body, Titanium Pin, 1/2-4″
  • (DN15 to DN100) Pipe Size

Applications

  • Water Treatment: Monitor water flow in clean water treatment systems, wastewater, or irrigation systems.
  • Chemical Industry: Measures the flow of chemical liquids in chemical production or transfer processes.
  • HVAC (Heating, Ventilation, and Air Conditioning): Monitoring water flow in heating, ventilation, and air conditioning systems.
  • Food and Beverage Industry: Measures liquid flow in food and beverage production processes.
  • Pharmaceuticals: Measures the flow of liquids in the production process of pharmaceuticals.
  • Agriculture: Measuring water flow in irrigation systems.

Features

  • Integral: Integrated sensors and connectors, making installation easy.
  • Paddlewheel: Uses the working principle of a paddlewheel to measure flow velocity.
  • Frequency: Produces an output signal in the form of frequency.
  • Accurate: High accuracy in flow measurement.
  • Wide: Wide range of flow measurement.
  • Durable: Durable and corrosion-resistant construction materials.
  • Versatile: Compatible with various pipe sizes.
  • Self-contained: Does not require external power.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
