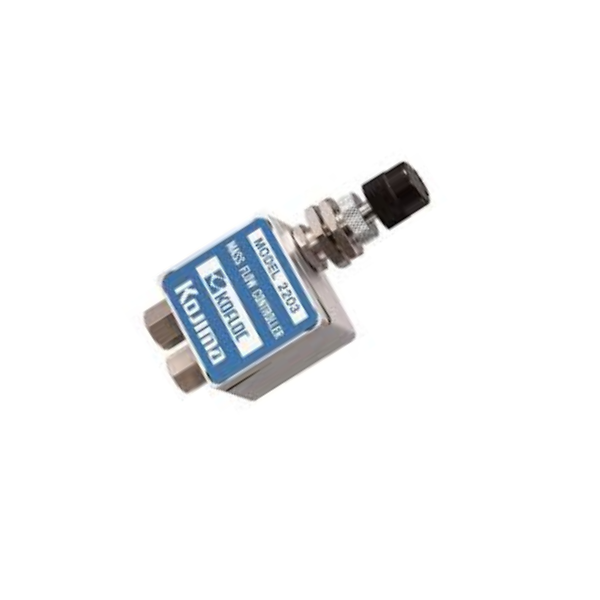

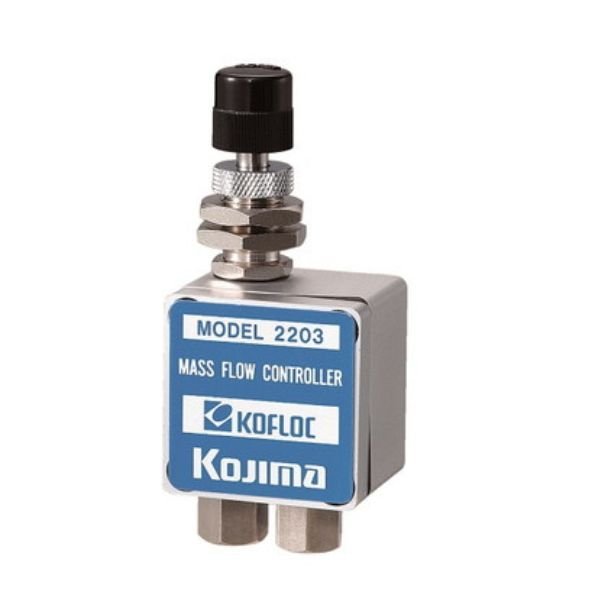

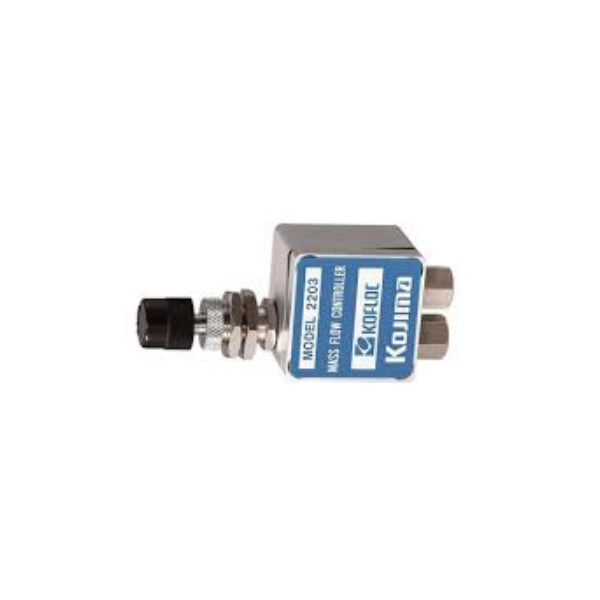

Kofloc Model 2203 Pressure Flow Controller

Kofloc Model 2203 Pressure Flow Controller: A flow controller is a differential pressure regulator designed to control minute gas flows with precision and keep a certain constant flow rate. Model 2203 Variable Secondary Pressure Flow Controller is a control valve that keeps mass flows at a constant rate under a given constant level of supply pressure even when the load pressure on the secondary side (outlet side) fluctuates, and its construction is designed so that the performance of its precision control overflows to the set flow rate is maintained by the incorporated precision needle valve without being affected by such fluctuations.

Kofloc Model 2203 Pressure Flow Controller: A flow controller is a differential pressure regulator designed to control minute gas flows with precision and keep a certain constant flow rate. Model 2203 Variable Secondary Pressure Flow Controller is a control valve that keeps mass flows at a constant rate under a given constant level of supply pressure even when the load pressure on the secondary side (outlet side) fluctuates, and its construction is designed so that the performance of its precision control overflows to the set flow rate is maintained by the incorporated precision needle valve without being affected by such fluctuations.

KOFLOC strives for thorough quality control at domestic factories.
In recent years, we have also been focusing on product development for liquid measurement and control equipment, and we will deliver products that can be trusted as “Fluid Kofloc” to the world.

Features

  • Stable flow control
    A non-rotary needle valve composed of high-precision components ensures smooth control of minute flows.
  • Not subject to load pressure fluctuations
    The incorporated precision needle valve protects flows from being affected by secondary or outlet pressure fluctuations, so the product is a ‘must-be’ tool in the first stage of any flow control line.
  • Cleanliness ensured
    All the components are super-cleaned before assembly so that the product can be safely used even on instruments for analysis for which cleanliness is essential.

Applications

  • Gas chromatographs
  • Environmental instrumentation systems
  • Gas mixing systems in various fields

Specifications

Rated flow ranges Gas: 10 ML/min–20 L/min
Control accuracy Change in reading within 1.0% of the change in load pressure
(Inlet-outlet pressure difference must be at least 0.05 MPa.)
Number of turns of
regulating screw
Approx. 12 turns
Maximum operating
pressure
0.8 MPa
Maximum operating
temperature
60℃
Materials of parts in
contact with fluids
(A) Al, brass, POM, NBR
(SS) SUS316, fluorocarbon resin, FKM
Connection end Rc 1/8 (M8 + Rc 1/8)

Optional Specifications

  • IN side filter joint Model 2300B
    • Connection joint

Downloads

Datasheet : Kofloc Model 2203 Variable Secondary Pressure Flow Controller
