Sale!

Original price was: Rp 2.710.000.Current price is: Rp 2.610.000.

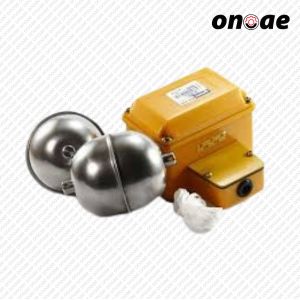

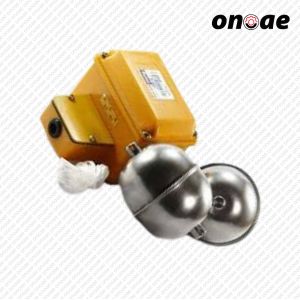

Level Switch Parker JF-302T

Minimum Order: 1 units

Lead Time Note: 7 - 10 Hari

Product Note:

No product notes available.

SKU: LEVELSWITCHPARKERJF-302T Categories: , Tags: , ,

Available on backorder

Contact us

Description

Description of Level Switch Parker JF-302T

The JF-302T is a float/sts floater type level switch from Parker Hannifin’s JF series, designed to detect liquid level in tanks, hoppers, and similar applications. The Stainless Steel (STS) float moves vertically with the liquid, and when it reaches a certain position, it activates an internal microswitch as a control signal. Designed for use with liquids such as water, oil, chemicals, and has a weatherproof/waterproof housing making it suitable for outdoor use.

Features

  • Float STS 304: corrosion resistant, suitable heavy liquids such as diesel, oil, and chemicals
  • Waterproof housing: safe to install outdoors.
  • Contact rating 10 A @ 250 VAC: supports direct control to pumps or relays
  • Control range 0.18-10 m: perfectly suited various tank applications from small to large
  • Working in temperature 0-120 °C: JF-302T version with metal float (STS) supports high temperature
  • Not affected by capacitive signals: safe for uninterrupted remote control.

Applications

  • Monitoring and protection in industrial tanks (water, oil, chemicals).
  • Automatic pumps: start/stop based on liquid level.
  • HVAC systems, boilers, and water treatment.
  • Oil/gas, chemical, food/coffee industries, which require stable and safe fluid control.

Specifications

  • Model JF-302T (float/STS type)
  • Media Water, sewage, light oil (diesel, heavy oil), alcohol, benzene
  • Control Range 0.18 – 10 m
  • Voltage & Frequency 110/220 V AC, 50/60 Hz
  • Contact Output AC 250 V, 10 A
  • Operating Temperature 0 – 120°C (STS float)
  • Float & Rod Material Stainless Steel 304
  • Watertight Housing, suitable for outdoor use
  • Dimensions & Variations Float diameter/length varies; STS float for high temperature
  • High Temperature Applications Conditions up to 120°C using STS float
