Sale!

Original price was: Rp 2.617.000.Current price is: Rp 2.329.000.

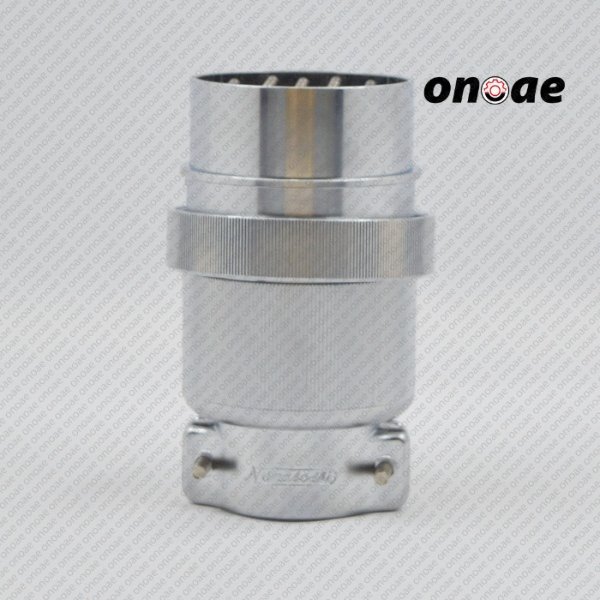

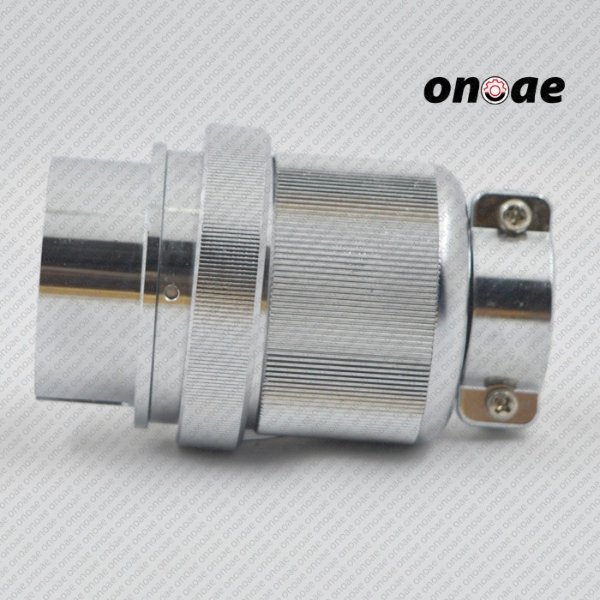

Nanaboshi NCS-6015-PM Circular Connector

Product Note:

No product notes available.

SKU: CNNCS6015PM Categories: , , Tags: , , , ,

8 in stock

Contact us

Description

Circular Connector Nanaboshi NCS-6015-PM Konektor Industri

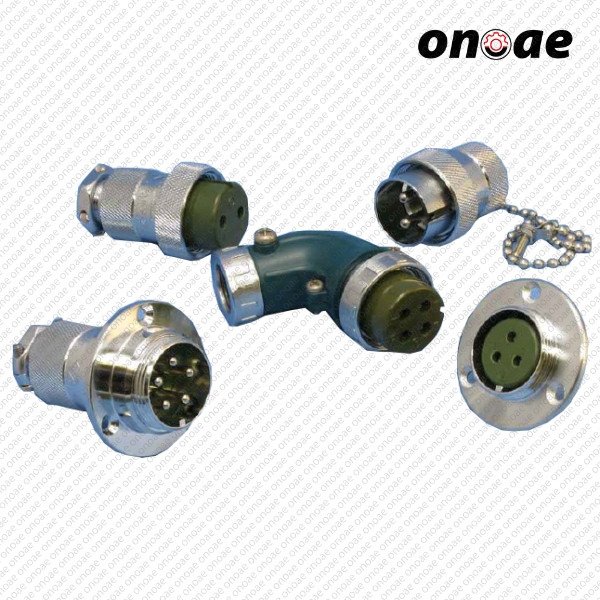

  • Basic type of round metal connectors.
  • Representative series that has proven performance in various indoor manufacturing
    equipment over a long period of time.
  • High resistance to starting current and load current, enabling these connectors
    active in various manufacturing equipment.

Additional information

Weight0,7 kg

Features

  • Simple and robust structure for easy handling
  • Product Type: Plug
  • Shell Size: 60

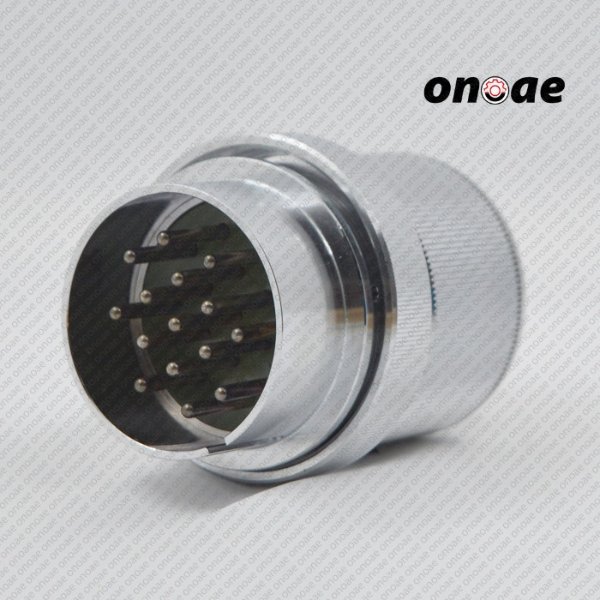

  • Number of Contacts: 15
  • Material: Zinc alloy or Brass (Shell), Synthetic resin (Insulator), Copper alloy (Contact)
  • Finish: Chrome plating (Shell), Silver plating (Contact)
  • Cable Termination: Soldering
  • Lock Method: Thread Lock
  • Operating Temperature Range: -40oC ~ +120oC
  • Waterproof: Non

Specifications

  • Insulation Resistance (M?): DC 1000V, 2000 min.
  • Contact Resistance (m?): 3 max.
  • Withstand Voltage (V r.m.s.): 2000
  • Limit Operating Voltage: 300V
  • Rate : 250V, 15A
  • Wire Size: 3.5 mm2

Applications

Ideal for connecting cables with equipment and other cables in a non-waterproof indoor environment such as inside a factory.

Downloads

Download Data Sheet : Nanaboshi NCS-6015-PM Circular ConnectorNanaboshi NCS-6015-PM Circular Connector
