Specifications

Commercial data

• Item number 1407735
• Packing unit 1 pc
• Minimum order quantity 1 pc
• Product key BF7ABC
• Catalog page Page 547 (C-2-2019)
• GTIN 4046356777704
• Weight per piece (including packing) 115 g
• Weight per piece (excluding packing) 115 g
• Customs tariff number 85366990
• Country of origin CN

Technical data notes

• General only use flexible conductors with ferrules
• General Connectors may be operated only when there is no load/voltage.

Mounting

• Assembly note To ensure correct use, installation in housing with IP54 protection or better is required

Product properties

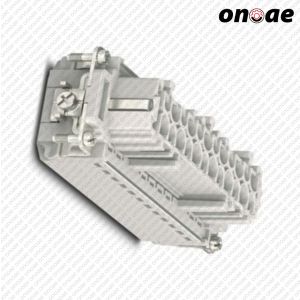

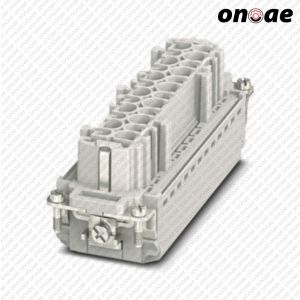

• Product type Contact insert with a fixed no. of positions
• Series HC-B

Application Power

• Type B24
• B48
• Number of positions 24
• Connection profile 24+PE
• Contact numbering 1 – 24
• Number of connections per position 1
• Contact material type rolled

Dimensions

• Width 34 mm
• Height 37 mm
• Length 111 mm
• Drill hole distance, horizontal 104 mm
• Drill hole distance, vertical 27 mm

Mechanical characteristics

• Contact diameter 2.5 mm
