Specifications

Commercial data

• Item number 1412721
• Packing unit 1 pc
• Minimum order quantity 1 pc
• Product key BF7APB
• Catalog page Page 624 (C-2-2019)
• GTIN 4055626059952
• Weight per piece (including packing) 198 g
• Weight per piece (excluding packing) 198 g
• Customs tariff number 85389099
• Country of origin PL

Technical data

• General For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K
• General also available as a powder-coated or color version: 1373031 HCSTA-B16-HLFD-1TTM25-EL/…

Product properties

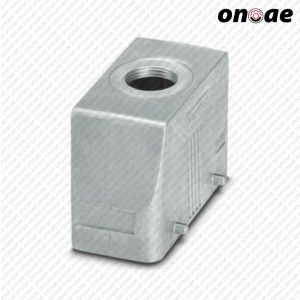

• Product type Housing with locking latch
• Housing type Sleeve housing
• Application Standard
• Type B16
• No. of cable outlets 1
• Type of the screw connection 1x M25
• Type Low design
• Cable outlet straight
• Pg screw connection none
• Data management status
• Article revision 03

Dimensions

• Width 44 mm
• Height 60 mm
• Length 93.5 mm

Material specifications

• Housing material Die-cast aluminum, salt water resistant
• Housing surface material uncoated
• Mechanical properties
• Mechanical data
• Type of the screw connection 1x M25
• Locking type Pin

Environmental and real-life conditions

• Ambient conditions
• Degree of protection IP66
