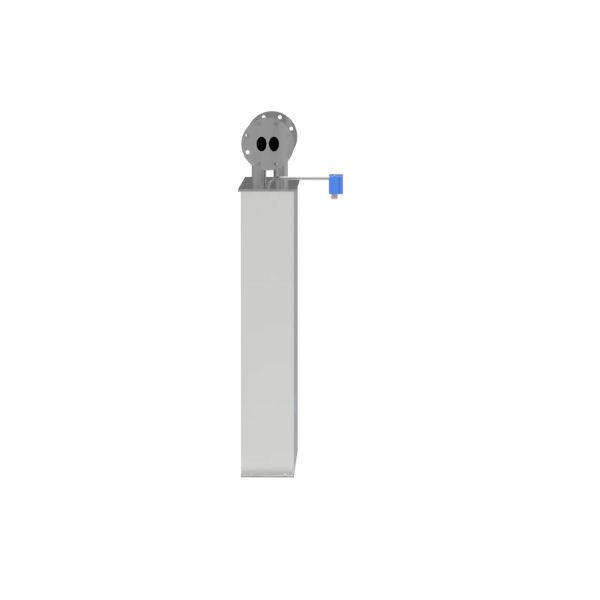

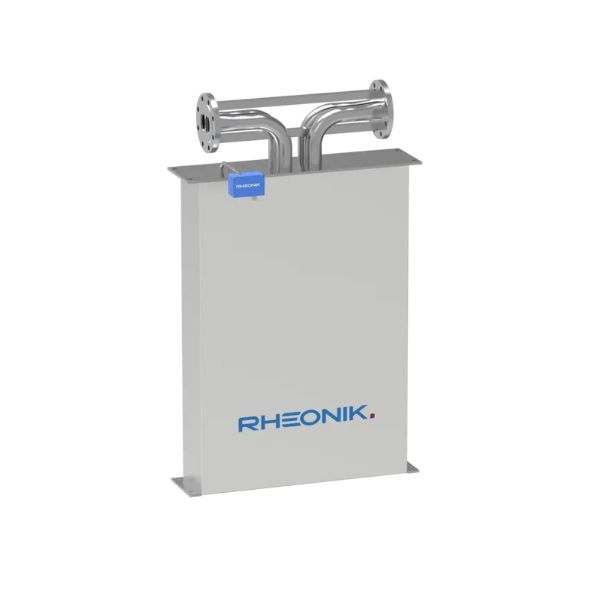

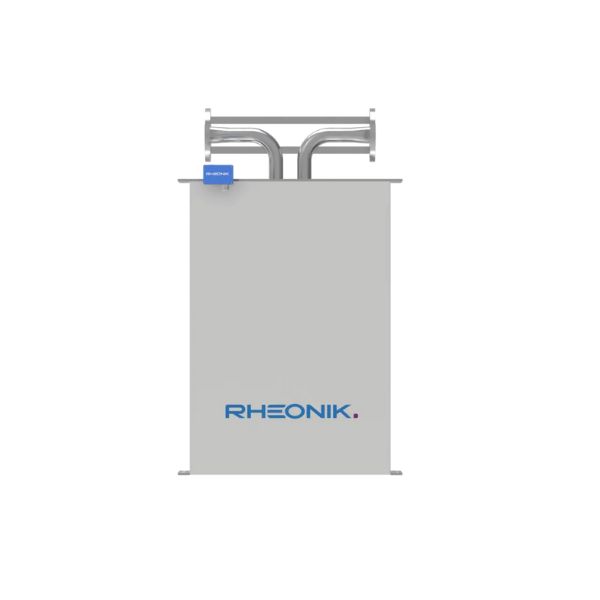

Rheonik RHM60 Coriolis Mass Flow Meter

The RHM 60 is a robust sensor designed for 4″ line sizes. The availablity of a variety of wetted materials and wide pressure/temperature ratings allow use in applications throughout all industries.

With highly accurate measurement performance and extreme capabilities, Rheonik meters are a natural choice for many applications and quickly provide payback through improved product quality and greatly reduced maintenance. Whether used for transfer, batching, process feed or control, Rheonik meters can provide online flow and density measurement.

Features

  • Typical measuring range up to 3000 kg/min (6613.87 lb/min)
  • Pressure ratings up to 490 bar (7107 psi)
  • Temperature ratings from -196 to +350 °C (-320 to +662°F) –extended on request
  • Mass flow uncertainty down to 0.1 %
  • Repeatability down to 0.05 %
  • 4 kHz measurement updates and response time of less than 10 mswhen used with RHE
  • 40 Series transmitters
  • Accurately measure flow rates down to 30 kg/min
  • The Rheonik AnyPipeFit Commitment providescustom process connection type and size flexibility on any meter to suit your existing plant, saving time and expense on installation costs
  • Approved for use in hazardous areas
  • SS 304 Stainless steel enclosure, SS 316 optional
  • Integral and remote transmitter versions available

Applications

  • Plant Balance
  • Terminal Transfer
  • Asphalt/Bitumen and other High Temperature Fluids
  • Viscous Fluids
  • Reactor Charging
  • Batching
  • Barge, Ship, Rail Car and Truck Filling

Specifications

Nominal Flow (Qₙₒₘ)*

2500 kg/min (5512 lb/min)

Maximum Flow (Qₘₐₓ)*

3000 kg/min (6614 lb/min)

Typical Minimum Flow (Qₘᵢₙ)*

30 kg/min (66 lb/min)

Operating Temperature

Fluid temperature range options cover applications from -196°C to +350°C (-320°F to +662°F). For integral transmitter versions please refer to transmitter datasheet

Ambient Temperature

-50 °C to +80 °C (-60 °F to +180 °F) (standard)

Pressure Ratings

Up to 490 bar / 7107 psi – dependent upon material

Electrical Connection Sensor
w/o Integral Transmitter

M20 x 1.5 standard cable entry for JM, SM terminal box versions

Optional entries available : ½” NPT or M25 x 1.5 (only for SM) or ¾” NPT (only for SM)

Max. cable length to remote RHE transmitter 100 m / 328 ft

Sensor Enclosure Materials

Stainless steel 304 (standard), SS 316 (optional)

Coated aluminum terminal box, SS 316 terminal box (optional)

Enclosure Type

Protection class IP65, NEMA 4 (standard); IP66 / NEMA 4X (optional)

Wetted Materials

1.4571 (SS 316Ti), 1.4410 (SuperDuplex) – standard

2.4602 (Alloy C22) – consult Factory

Additional/customer specific materials available upon request

Process Connections

Nearly any – the Rheonik AnyPipeFit Commitment.  Consult factory for types/sizes not listed in this data sheet on the Mechanical Construction pages

Pressure Rating Compliance

Europe – PED: Module A2, Module B3.1+C2

Canada – CRN: Canadian Registration Number

Certifications and Approvals

ATEX / IECEx Approvals for Zone 0, 1 (details see page 10)

North American Approvals Class I, Div. 1, 2, Gr. A,B,C,D, Zone 0, 1, 2

MID custody transfer approval (OIML R117)

American Bureau of Shipping (ABS) Product Type Approval for use on marine vessels

Testing and Inspection

All sensors are hydro tested, calibrated and supplied with a traceable calibration certificate. Customized calibration and testing services are available

Project Documentation and QA, Services

Rheonik offers a full set of services for large and complex engineering projects.
Typical services offered are, but not limited to:

•Certificates of origin and conformity, mill certificates

•Data books including WPAR, WQS, NDT, test & quality plans, functional testing, calibration procedures, customized packing, factory acceptance etc.

•Painting to project specification

•Start up and commissioning services on/offshore

Options

Enclosure heating for high temperature applications

Cleaning for oxygen service , …

For more consult factory



* At Qₙₒₘ pressure drop across a parallel tube sensor will be approximately 0.5 bar (7 psi) for H₂0. Sensors can be operated at higher flow rates up to Qₘₐₓ but pressure drop will be higher. Typical Minimum Flow Qₘᵢₙ is the recommended lowest flow rate for an accurate measurement. Sensors will measure flow rates lower than Qₘᵢₙ but uncertainty will increase beyond 1 % of rate.

The flow rate specifications above relate to standard pressure, parallel tube, manifold sensor versions. Models with higher pressure ratings have increased wall thickness and will have higher pressure drops.

Downloads

Datasheet: Rheonik RHM60 Coriolis Mass Flow Meter
