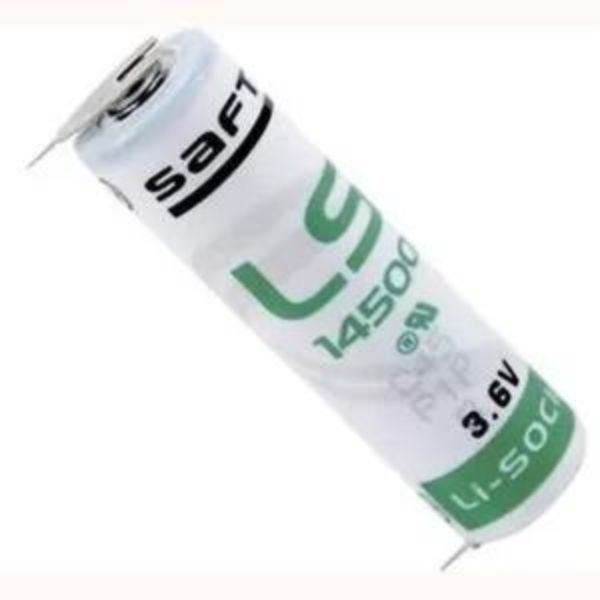

Saft LS 14500 Lithium Battery

Saft LS 14500 Cell is ideally suited for long-term applications (typically from 5 to 20+ years), Featuring low base currents and periodic pulses.

Saft LS 14500 Cell is ideally suited for long-term applications (typically from 5 to 20+ years), Featuring low base currents and periodic pulses.

The bobbin construction of the LS range enables the maximum loading of active materials and the correspondingly maximum energy. With its remarkably low self-discharge, it perfectly matches long-term (from five to 20 years plus) applications featuring a few µA base currents and periodic pulses, typically in the 5-150 mA range.

Features

  • Stainless steel container and end caps (low magnetic signature)
  • Hermetic glass-to-metal sealing
  • Non-flammable electrolyte
  • Compliant with IEC 60086-4 safety standard and
    IEC 60079-11 intrinsic safety standard (class T3 assignment)
  • Underwriters Laboratories (UL) Component Recognition
  • Non-restricted for transport/
  • Non-assigned to Class 9 according to the UN Recommendations on the transport of dangerous goods
    – Model Regulations

Applications

  • Utility metering
  • Automatic meter reading
  • Alarms and security devices
  • Tollgate systems
  • Memory back-up
  • Tracking systems
  • Automotive electronics
  • Professional electronics

Specifications

Cell Size AA
Cell Construction Bobbin
Nominal Voltage 3.6 V
Nominal Capacity 2.6 Ah
Max. Continuous Current 50 mA
Max. Pulse Discharge Rate 0.25 A
Max. Outside Diameter 14.55 mm
Max. Height 50.3 mm
Typical Weight 16.7 g
Operating Temperature Range -60/+80°C

Downloads

Datasheet: Saft LS 14500 Lithium Battery
