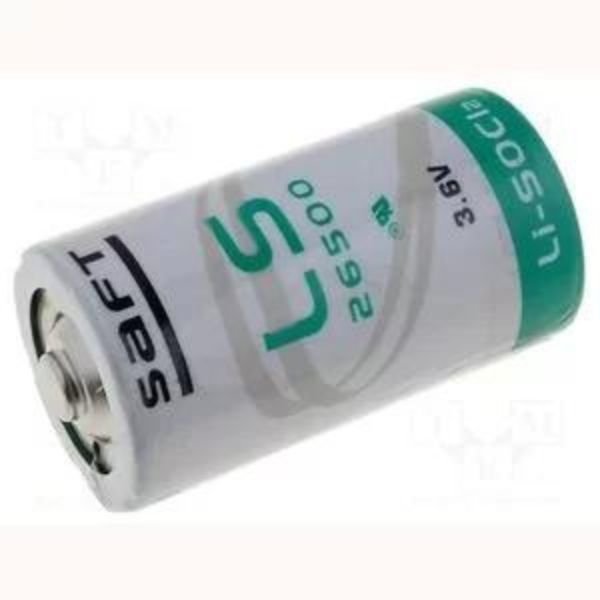

Saft LS 26500 Lithium Battery

Saft LS 26500 Cell is ideally suited for long-term applications (typically from 5 to 20+ years), Featuring low base currents and periodic pulses.

The bobbin construction of the LS range enables the maximum loading of active materials and the correspondingly maximum energy. With its remarkably low self-discharge, it perfectly matches long-term (from five to 20 years plus) applications featuring a few µA base currents and periodic pulses, typically in the 5-150 mA range.

Saft LS 26500 Cell is ideally suited for long-term applications (typically from 5 to 20+ years), Featuring low base currents and periodic pulses.

Features

  • High voltage response, stable during most of the lifetime of the application
  • Wide operating temperature range (-60°C/+85°C)
  • Low self-discharge rate (less than 1 % after 1 year of storage at + 20°C)
  • Easy integration into compact systems
  • Superior resistance to atmospheric corrosion
  • Stainless steel container and end caps (low magnetic signature)
  • Hermetic glass-to-metal sealing Non-flammable electrolyte
  • Underwriters Laboratories (UL) Component Recognition
  • Compliant with IEC 60086-4 safety standard and IEC 60079-11 intrinsic safety standard
  • Restricted for transport (Class 9)

Applications

  • Utility metering
  • Automatic meter readers Buoys
  • Measuring equipment Industrial applications
  • Professional electronics

Specifications

Cell Size C
Cell Construction Bobbin
Nominal Voltage 3.6 V
Nominal Capacity 7.7 Ah
Max. Continuous Current 150 mA
Max. Pulse Discharge Rate 0.3 A
Max. Outside Diameter 26.0 mm
Max. Height 50.4 mm
Typical Weight 48 g
Operating Temperature Range -60/+85°C

Downloads

Datasheet: Saft LS 26500 Lithium Battery
