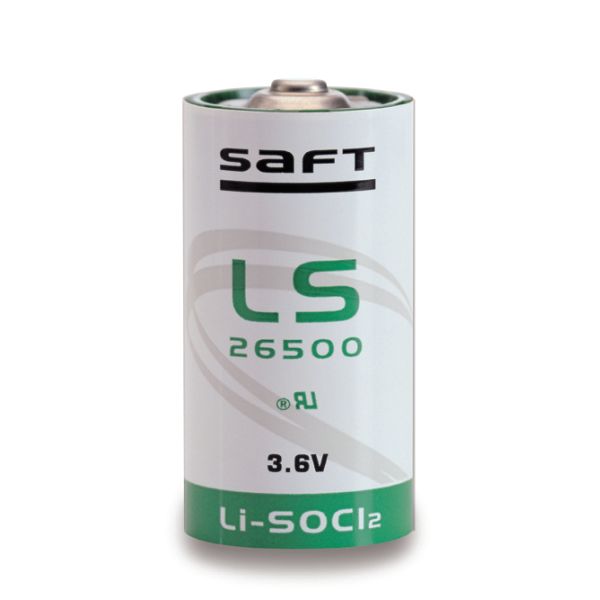

Saft LSP 26500-20F Lithium Battery

Saft’s LSP 26500-20F battery is ideally suited for long life applications (typically from 5 to 10 years), featuring low base currents and periodic high current pulses up to 1.5 A.

Saft LSP 26500-20F Lithium Battery is ideally suited for long-life applications (typically from 5 to 10 years), featuring low base currents and periodic high current pulses up to 1.5 A.

Saft LSP 26500-20F is Designed to meet all major quality, safety, and environmental standards

  • Safety: UL 1642 (File MH 12609) IEC 60086-4 (for the Li-SOC/2 cell
  • Transport: UN 3090, 3091 & 3499 for components [assembly under testing)
  • Quality: ISO 9001, Saft World Class continuous program
  • Environment: ISO 14001, RoHS, and REACH compliant

Features

  • High pulse current capability
  • High voltage response, stable even after long dormant periods
  • Low self-discharge compatible with long operating life (less than 1.5% after 1 year of storage at+ 20 °C)
  • Wide operating temperature range (-20°C to +70°C)

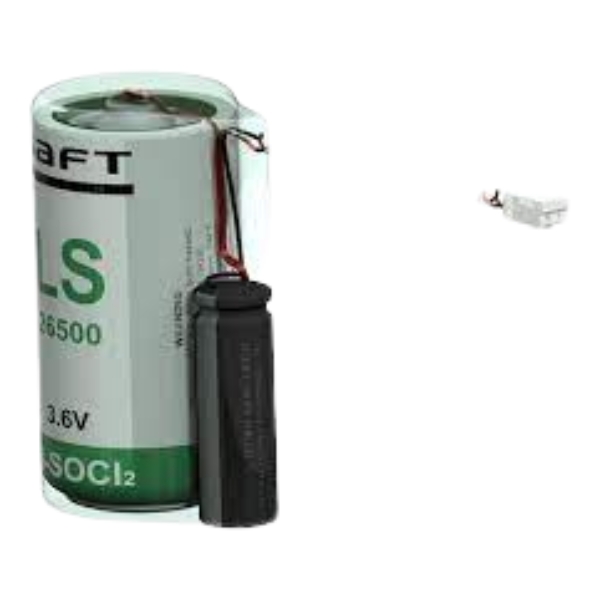

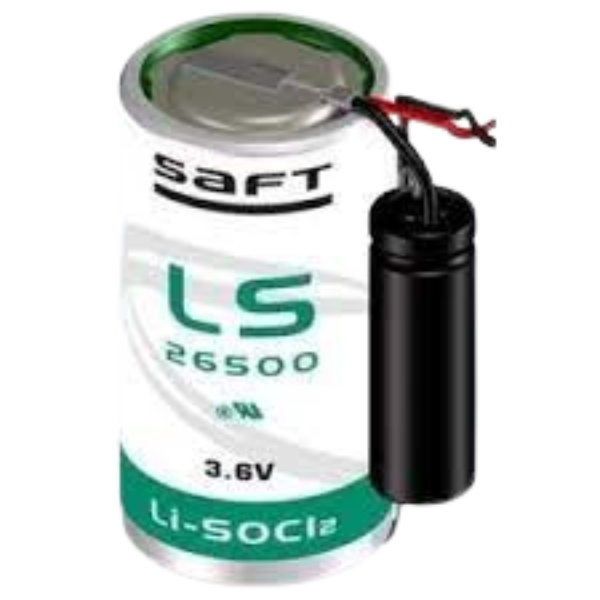

  • Battery made of Salt’s LS 26500°C size bobbin Li-SOCl2 cell fitted with a 20°F LIC (Lithium Ion Capacitor) in parallel connection for pulse support
  • Restricted for transport [class 9]

Applications

  • Utility metering
  • Automatic meter readers
  • Buoys
  • Measuring equipment
  • Industrial applications
  • Professional electronics

Specifications

Cell Size C
Cell Construction Bobbin
Nominal Voltage 3.6 V
Nominal Capacity 3.67 Ah
Max. length 37 mm
Max. width 26.5 mm
Max. height 51.5 mm
Typical weight 52.0 g
Operating temperature range -20°C to + 70°C
