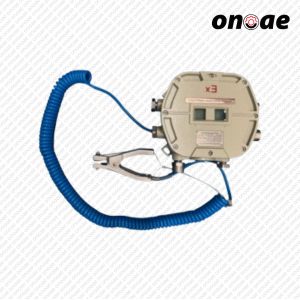

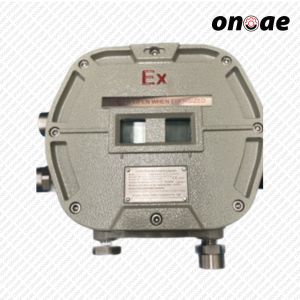

Static Ground Monitoring System with SS Ground Clamp SLA-S-Y

Name: Static Ground Monitoring System with SS Ground Clamp SLA-S-Y | onoae
SKU: SGMSWSSGCSLA-S-Y
Price: 38570000 IDR
Availability: InStock

Minimum Order: 1 units

Lead Time: 6 weeks

Product Note:

No product notes available.

SKU: SGMSWSSGCSLA-S-Y Categories: Display, Indicator, and Control, Flow Indicator/Totalizer Tags: Display Indicator and Control, Flow Indicator/Totalizer, Static Ground Monitoring System with SS Ground Clamp SLA-S-Y

Available on backorder

Description

Description of Static Ground Monitoring System with SS Ground Clamp SLA-S-Y

Static Ground Monitoring System SLA-S-Y is a static ground monitoring system designed to ensure safety during flammable or explosive material transfer processes, such as filling and emptying of truck tanks. The system provides a visual indication of the ground condition and comes with an interlock feature that prevents equipment operation if the ground is inadequate, thus reducing the risk of fire or explosion due to static electricity accumulation.

Features

Visual Indicator: A green LED light indicates adequate earthing, while a red light indicates inadequate earthing.
Interlock Function: Prevents operation of the pump or other equipment until safe earthing is detected.
Quick Response: Less than 2 seconds response time to detect earthing condition.
Durable Spiral Cable: A 5.3 meter two-core spiral cable that is oil, UV and hydrolysis resistant, with an operating temperature of -40°C to +60°C.
Stainless Steel Clamp: The SC-03 clamp is made of die-cast aluminum with three stainless steel contact points for reliable connections.
ATEX Certification: Meets safety standards for use in hazardous environments.

Applications

SLA-S-Y is suitable for use in a variety of industries and situations, including:

Truck Tank Filling and Emptying: Ensures safe earthing during fuel or chemical transfer.
Chemical and Petrochemical Plants: Reduce the risk of static electricity accumulation in the production process.
Flammable Material Storage Warehouses: Maintain safety during material transfer operations.
Refueling Stations: Prevent the risk of fire due to static electricity during refueling.

Specifications

Model SLA-S-Y
Input Voltage : 85-250 VAC, 50 Hz
Input Current : < 60 mA
Output Signal : On-Off Signal
Monitoring Set Point : 10 ohm
Indicator : LED Light (Green: good grounding, Red: no grounding)
Alarm : Visual alarm
Response Time : < 2 seconds
Operating Temperature : -20°C to +55°C
Clamp : SC-05, die-cast aluminum, 3 stainless steel contact points
Spiral Cable Length 10 meters
