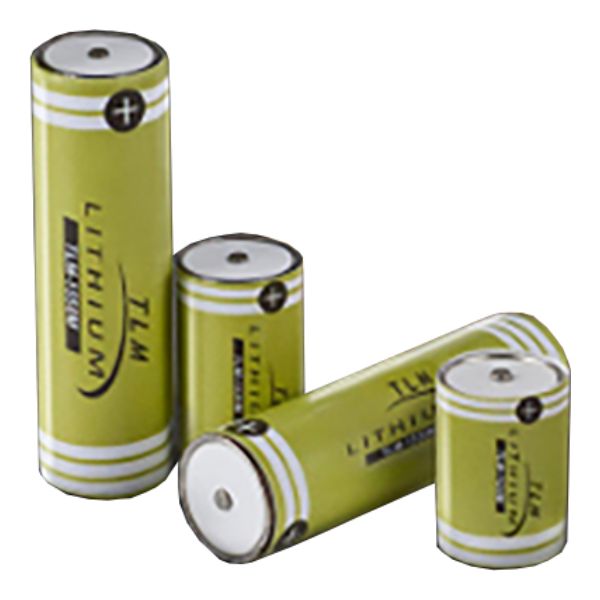

Tadiran TLM Series Lithium Metal Oxide Batteries

Product Note:

No product notes available.

Description

Tadiran TLM Series is a military-grade battery constructed with a carbon-based anode, multi-metal oxide cathode, organic electrolyte, and shut-down separator for enhanced safety. These batteries feature an open circuit voltage of 4V with a discharge capacity of 500 mAh (20 mA at 2.8V RT) and are capable of handling 5A continuous pulses and 15A maximum high current pulses. They also feature low self-discharge and an extremely wide operating temperature range of -40°C to 85°C.

Tadiran TLM Series Descriptions

Tadiran TLM Military series of cells are also extremely safe, as their solvents are non-toxic and non-pressurized and their anode material is less reactive than that found in other lithium cells. The batteries have performed well in a variety of safety tests, including nail penetration, crush tests, high-temperature chambers, short circuits, and charge tests. Two families – High Power and Medium Power – are currently available in 3 different sizes.

TLM Military Grade batteries comply with MIL-STD 810G specs for vibration, shock, temperature shock, salt fog, altitude, acceleration (50,000 gn), and spinning (30,000 rpm) as well as UN 1642 and IEC 60086 standards for crush, impact, nail penetration, heat, over-charge and short circuit, and can be shipped as non-hazardous goods.

TLM Military Grade batteries come in a wide variety of cylindrical configurations, and can easily be assembled into custom battery packs. To learn more about these powerful little batteries, contact us or complete our application questionnaire.

Features

  • Small, Light, Powerful
  • (4.0 V open circuit voltage, 500 mAh capacity)
  • Safe Design
  • (glass-to-metal hermetic seal)
  • Low Self-discharge (enables up to 20-year storage life)
  • High Survivability (withstands 50,000 gn acceleration and 30,000 rpm spinning)
  • Wider Operating Temperature (-40°C to 85°C)
  • End-of-life Indication (allows programming for low battery status alerts)
  • COTS Technology (far less expensive than reserve/thermal batteries)

Applications

  • Avionics
  • Navigation systems
  • Ordinance fuses
  • Missile systems
  • Telemetry
  • Electronic warfare systems
  • GPS tracking
  • Emergency/safety devices
  • Shipboard devices
  • Oceanographic

Specifications

Capacity0.24 Ah
Chemical SystemLithium
Dimensions1.079″ H x 0.583″ Dia.
Operating Temperature-40 to 85 C
Primary TypeNon-Rechargeable
Product HeaderHigh Power Lithium Battery
SeriesTLM Series
Size2/3 AA
Tab TypeSpecialty Batteries
TerminationSolder Tab
Voltage Rating4 V
