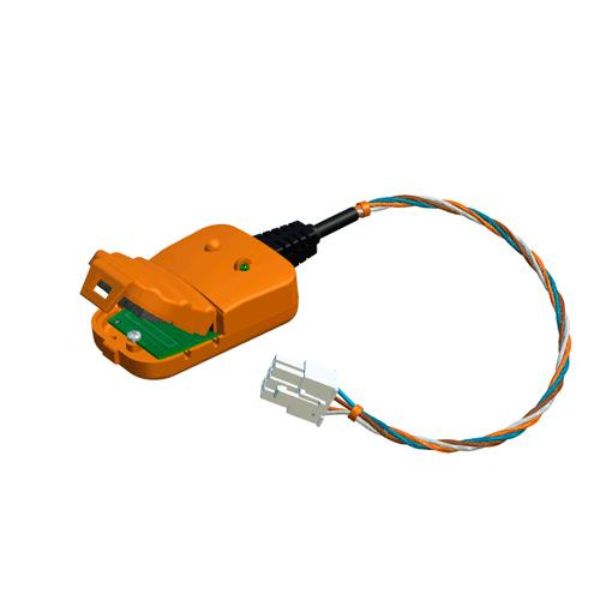

Technoton Crocodile Contactless FMS gateway

FMSCrocodile is used within for vehicle telematics system as a ready-made solution for safe integration of data from one or more automotive buses into CAN/S6 Telematics Interface.

FMSCrocodile is used within for vehicle telematics system as a ready-made solution for safe integration of data from one or more automotive buses into CAN/S6 Telematics Interface. FMSCrocodile allows to obtain a large number of vehicle operating parameters via just one CAN-port of telematics unit.

FMSCrocodile CCAN safely reads CAN bus data without any electrical contact with CAN wires, automatically generates and sends FMS and Telematics messages to its output CAN 2.0B interface (J1939 protocol). Thus, telematics unit configuration is simplified since unnecessary data from the bus is filtered and only useful information for vehicle telematics purposes is sent.

Features

  • Sending ready-to-use telematics messages
  • Allows association of data from several CANbuses
  • CANbus protection

Applications

  • Buses
  • Trucks
  • Tractors
  • Other vehicles with CAN bus

Specifications

Nominal supply voltage, V 10 … 45
Operation temperature range, °С -40 … +85
Current consumption, mA (24 V/12 V), not more 40
Weight, g, not more than 100
Level of message losses, %, not more 1
Input interface CAN (SAE J1939)
Output interface CAN j1939/S6 (FMS/Telematics)

Downloads

Datasheet: Technoton Crocodile Contactless FMS gateway
