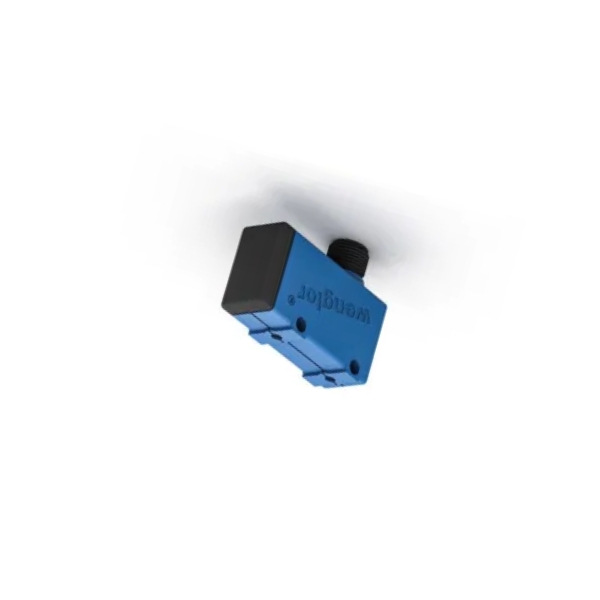

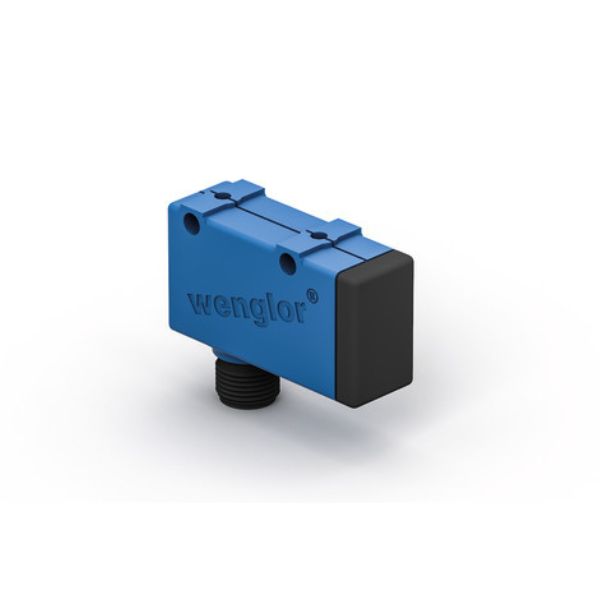

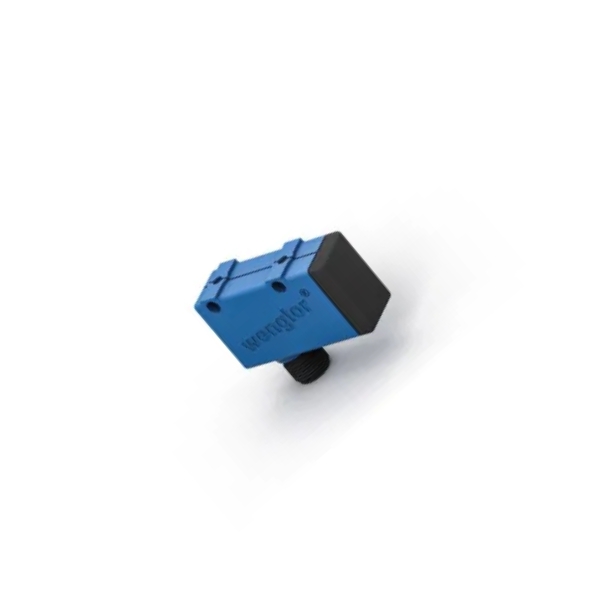

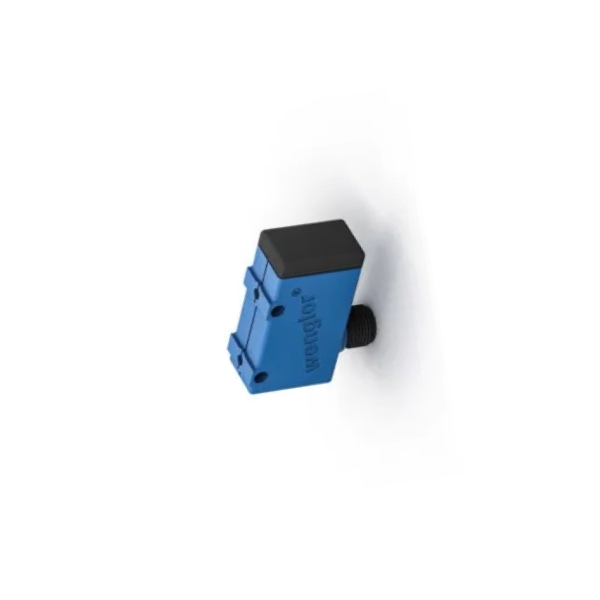

Wenglor OTM502C0002 Reflex Sensor Energetic

Product Note:

No product notes available.

Description

Wenglor OTM502C0002 Reflex Sensor Energetic

Wenglor OTM502C0002 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.

Features at a Glance

  • IO-Link interface
  • Compact housing
  • Teach-in, external teach-in
  • Large detection range

Electrical Data
Supply Voltage 18 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 2,500 Hz
Response Time 200 µs
On-/Off-Delay 0 … 60 s
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Lockable yes
Teach Mode NT, MT
Interface IO-Link V1.0
IO-Link Parameter 12
Protection Class III

Features

  • IO-Link interface
  • Compact housing
  • Teach-in, external teach-in
  • Large detection range

Applications

Detection of Palms in Disinfectant Dispensers with Reflex Sensors

Disinfection stations for hands are provided in public areas such as shops, schools, train stations, airports, football stadiums, gyms and many more to meet hygiene standards. The automated disinfectant dispensers have one inlet for each hand. Compact reflex sensors are installed in narrow areas for contactless detection of the hands. The disinfection cycle starts as soon as the sensor has detected that both hands are present. This hygiene measure can combat the spread of germs quickly, effectively and fully automatically.

Energetic Reflex Sensors

Reflex sensors check objects for presence, check stack heights or perform counting tasks. They are used when objects need to be detected without a defined background. For this purpose, they use red light or infrared light according to the energy principle.

Specifications

Optical Data

Range500 mm
Switching Hysteresis < 10 %
Light SourceInfrared Light
Wavelength850 nm
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Opening Angle12 °

Electrical Data

Supply Voltage18 … 30 V
Current Consumption (Ub = 24 V)< 30 mA
Switching Frequency2,500 Hz
Response Time200 µs
On-/Off-Delay0 … 60 s
Temperature Drift< 10 %
Temperature Range-25 … 60 °C
Switching Output Voltage Drop< 2.5 V
PNP Switching Output/Switching Current100 mA
Residual Current Switching Output< 50 µA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
Lockableyes
Teach ModeNT, MT
InterfaceIO-Link V1.0
IO-Link Parameter12
Protection ClassIII

Mechanical Data

Setting MethodTeach-In
Housing MaterialPlastic
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Output

IO-Linkyes
PNP NOyes

Adjustable parameters

CircuitNC
NC/NO
NO

Downloads

Datasheet : Wenglor OTM502C0002 Reflex Sensor Energetic
