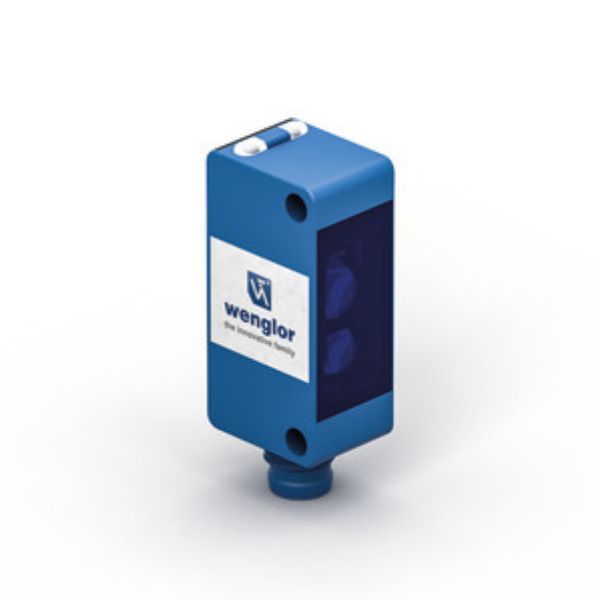

Wenglor P1KH019 Reflex Sensor Background Suppression

Wenglor P1KH019 Reflex Sensor Background Suppression

Wenglor P1KH019 Reflex Sensor Background Suppression the reflex sensor with background suppression works with blue light according to the angle measurement principle and is designed to detect objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects.

Get a Quote

Wenglor P1KH019 Reflex Sensor Background Suppression the reflex sensor with background suppression works with blue light according to the angle measurement principle and is designed to detect objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects. The reflect sensor with blue light is specially designed for applications with dark shiny objects, such as when manufacturing solar wafers. The IO-Link interface can be used to configure the reflex sensors (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and distance values.

Features at a Glance

  • Condition monitoring
  • IO-Link 1.1
  • Detect extremely small parts starting at 0.1 mm
  • High switching frequency

Electrical Data

  • Supply Voltage: 10 … 30 V DC
  • Supply Voltage with IO-Link: 18 … 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 2,000 Hz
  • Switching Frequency (interference-free mode): 1,000 Hz
  • Response Time: 0.25 ms
  • Response time (interference-free mode): 0.5 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40 … 60 °C
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Interface: IO-Link V1.1
  • Protection Class: III

Features

  • Blue light for dark, shiny objects
  • Condition monitoring
  • IO-Link 1.1
  • Reliably detect objects against any background

Applications

Presence Check of Black Components in the Assembly of Shavers Using Reflex Sensors with Background Suppression

When manufacturing shavers, it must be ensured that the components are available in the correct position and quantity during the assembly process. Reflex sensors with background suppression are mounted above the mounting holders to check the presence of the black plastic components. The confined spaces are no obstacle thanks to the miniature housings. The blue light ensures that the black objects are reliably detected even when positioned at an angle. After all holders have been filled and the presence of all parts has been confirmed, a robot grips the parts.

Reflex Sensors With Background Suppression

Reflex sensors with background suppression detect and measure objects contactlessly and detect them in front of any defined background. They work with red light, infrared light, blue light or laser light. Thanks to the principle of angle measurement, the color, shape and object surface have no influence on the switching behavior of the sensors.

Specifications

Optical Data
Range 150 mm
Setting Range 30 … 150 mm
Switching Hysteresis  < 10 %
Light Source Blue Light
Service Life (T = +25 °C) 100,000 h
Risk Group (EN 62471) 1
Max. Ambient Light 10,000 Lux
Light Spot Diameter see Table 1

Mechanical Data
Setting Method Potentiometer
Housing Material Plastic
Degree of Protection IP67/IP68
Connection M8 × 1; 4-pin
Optic Cover PMMA

Safety-relevant Data
MTTFd (EN ISO 13849-1) 1,717.03 a

Output
PNP NO/NC antivalent yes
IO-Link yes

Adjustable parameters
Output Push-pull
NPN
PNP
Circuit Inactive
Error output
NC
NC+NO
NO
Other parameters Off-delay
On-delay
Mode of operation
Hysteresis
Switching point
Emitted light

Table 1
Detection Range 50 mm 100 mm 150 mm
Light Spot Diameter 4 mm 6 mm 10 mm

Downloads

Datasheet : Wenglor P1KH019 Reflex Sensor with Background Suppression
