Sale!

Original price was: Rp 33.100.000.Current price is: Rp 33.060.000.

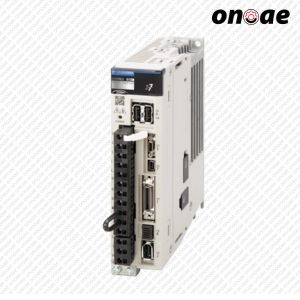

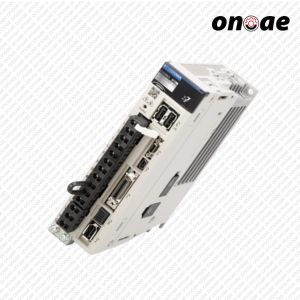

AC Servopack SGD7S-180A10A Yaskawa

Minimum Order: 1 units

Lead Time: 14 weeks

Product Note:

No product notes available.

Available on backorder

Description

Description of AC Servopack SGD7S-180A10A Yaskawa

The Yaskawa SGD7S-180A10A is a single-axis servopack from the Sigma-7 series that supports rotary and linear servo motors up to 2 kW capacity. Designed for high performance, it offers a speed frequency response of up to 3.1 kHz, and comes with high-level safety features such as SIL3 and PL-e CAT3. Compatible with the MECHATROLINK-II communication interface, this servopack is ideal for applications that require precision control and high reliability.

Features

  • High Frequency Response: With a speed frequency response of up to 3.1 kHz, this servopack enables fast, high-precision servo control.
  • Advanced Safety Features: Supports safety functions such as Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Stop 2 (SS2), and Safe Limited Speed (SLS), in accordance with SIL3 and PL-e CAT3 standards.
  • Vibration and Ripple Compensation: Equipped with ripple compensation and vibration suppression functions to improve system stability and accuracy.
  • Communication Interface: Supports communication via MECHATROLINK-II for easy integration in automation systems.
  • Auto Tuning: The tuning-less feature allows the servo system to adjust parameters automatically without user intervention.

Applications

The Yaskawa SGD7S-180A10A is suitable for a wide range of industrial applications that require high precision control and reliability, including:

  • CNC machines: For precision control of cutting, milling, and turning machines.
  • Industrial Automation: In factory automation systems for servo motor control.
  • Robotics: As drives in robot arms and automated manipulation systems.
  • Packaging Machinery: For speed and position control in automated packaging processes.
  • Medical Equipment: In medical devices that require precision motion control.

Specifications

  • Model: SGD7S-180A10A
  • Type: Single-axis servopack
  • Input Voltage: 3-phase, 200 VAC
  • Maximum Motor Capacity: 2 kW
  • Continuous Output Current: 18.5 Arms
  • Instantaneous Maximum Output Current: 42 Arms
  • Communication Interface: MECHATROLINK-II
  • Safety Features: STO, SS1, SS2, SLS (SIL3, PL-e CAT3)
  • Dimensions: Height 215 mm, Width 103 mm, Depth 195 mm
  • Weight: Approximately 2.7 kg
  • Certifications: IEC 61508 SIL3, ISO 13849-1 PL-e CAT3
