onoae

Sale!

Original price was: Rp 34.175.000.Current price is: Rp 34.075.000.

CES Receptacle series Wall Mount Type 30Amp

Minimum Order: 1 units

Lead Time Note: 7 - 10 Hari

Product Note:

No product notes available.

Available on backorder

Description

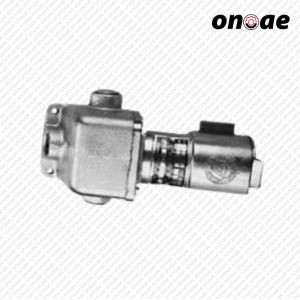

Description of CES Receptacle series Wall Mount Type 30Amp

The CES series wall receptacle is an industrial-grade 30 A pin-and-sleeve electrical connection, with an explosion-proof wall mount box and protective cover. Designed for electrical systems in hazardous environments, these units are used in conjunction with CPH plugs, enabling safe and reliable power supply from 125-250 VAC three-phase.

Features

  • Factory sealed housing: internal spark-proof design, arcing is tightly sealed on the body without the need for external seals.
  • Corrosion-resistant materials: copper-free aluminum body, stainless/malleable iron cover, with triple-coat (zinc-electroplate + chromate + epoxy).
  • Slide-Lok™ safety design: automatic contact delay and deep recessed pins prevent shock when unlocked.
  • Spring-loaded dust door: closes automatically to protect contacts when not in use.
  • Wiring pressure terminals: pressure-type terminals keep wiring connections safe.

Applications

  • Hazardous area electrical systems such as oil refineries, chemical, gas plants & paint shops.
  • CPH plug connectors for motors, portable generators, blowers, and other heavy equipment.
  • Lighting rigs, compressors, conveyors in industrial areas.
  • Marine & offshore installations or processing facilities with hazardous areas.
