Name: Chalwyn PVX Pneumatic Spring Return Butterfly (CE218) | onoae
SKU: PVXCE218
Price: 118918800 IDR
Availability: InStock

Description

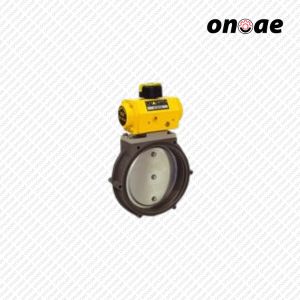

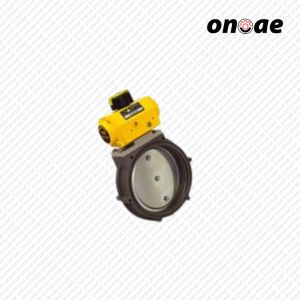

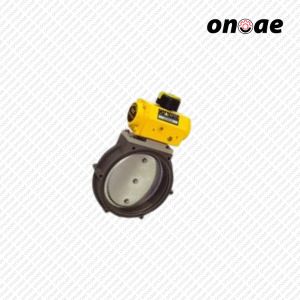

Chalwyn PVX Pneumatic Spring Return Butterfly (CE218)

Chalwyn PVX Pneumatic Spring Return Butterfly (CE218) uses a spring return rotary actuator. It is available in two basic versions:

Air pressure to open / spring return close on loss of air pressure (failsafe)
Air pressure to close / spring return open on loss of air pressure

Both versions are designed to work with direct pressure operation in either automatic or manual systems.

Features

For use in automatic or manual shutdown systems
Operating pressure range 43.5 to 116psig (3 to 8bar)
Slim-fit 3”, 5”, and 8” (76mm, 127mm, and 203mm) valve body
Basic flange mount with hose adaptors available (1½” to 8” | 38 to 203mm)
Valve bodies and discs are PTFE coated hard anodized aluminum
Shaft and mechanisms are stainless steel

Specifications

Valve Size:      (3” | 76mm)    (5” | 127mm)    (8” | 203mm)
Pressure to Open    PVX-300             PVX-500      PVX-800
Pressure to Close    PVX-301             PVX-501              PVX-801

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Chalwyn PVX Pneumatic Spring Return Butterfly (CE218)

Chalwyn PVX Pneumatic Spring Return Butterfly (CE218) uses a spring return rotary actuator. It is available in two basic versions:

Air pressure to open / spring return close on loss of air pressure (failsafe)

Air pressure to close / spring return open on loss of air pressure

Both versions are designed to work with direct pressure operation in either automatic or manual systems.

Features

For use in automatic or manual shutdown systems

Operating pressure range 43.5 to 116psig (3 to 8bar)

Slim-fit 3”, 5”, and 8” (76mm, 127mm, and 203mm) valve body

Basic flange mount with hose adaptors available (1½” to 8” | 38 to 203mm)

Valve bodies and discs are PTFE coated hard anodized aluminum

Shaft and mechanisms are stainless steel
