Coriolis Mass Flow Meter RHM03 with RHE28
Coriolis Mass Flow Meter RHM03 with RHE28 is an advanced mass flow meter, utilizing the Coriolis principle to provide accurate and reliable measurements on a wide range of fluids.

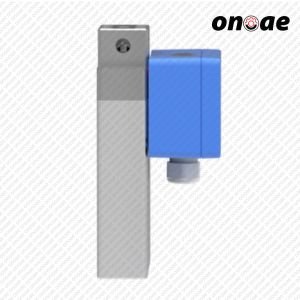

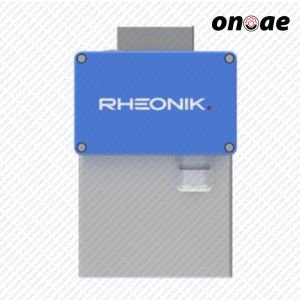

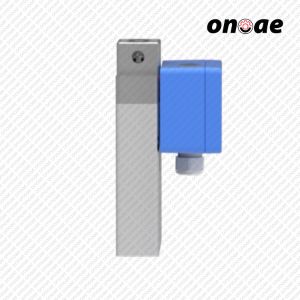

RHM 03
The RHM 03 is available with a wide selection of wetted materials and the highest pressure and temperature ratings in the market. It is suitable for all low flow applications where high accuracy is a must.
- Range: 0.03 kg/min up to 7.5 kg/min
- Pressure: up to 1311 bar (19014 psi)
- Temperature: -196°C (-321°F) up to +210°C (410°F)
- Accuracy: 0.1 % of rate
- Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410, Alloy C22 – 2.4602
- Process Connection: ¼” up to 1″

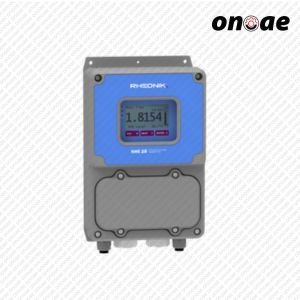

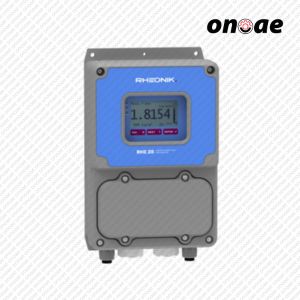

RHE 28
The RHE28 is an advanced function transmitter in a rugged epoxy coated enclosure designed for field mounting. With enclosure ratings up to IP67, the RHE28 has the flexibility to be installed in both ordinary and hazardous areas (Zone 2). Features such as API Standard Volume correction and Net Oil calculation are available.
- Measures Mass Flow, Volumetric Flow, Density and Temperature
- Outputs 2 x Analog, 2 x Frequency/Pulse, 2 x Digital Status
- Inputs 2 x Digital, 1 x Analog
- PC USB for RHECom, RS 485 for Modbus RTU, HART over Analog
- Backlit Color LCD
- ATEX/IEC Ex, CSA approved
- Rheonik Assurance Factor®
