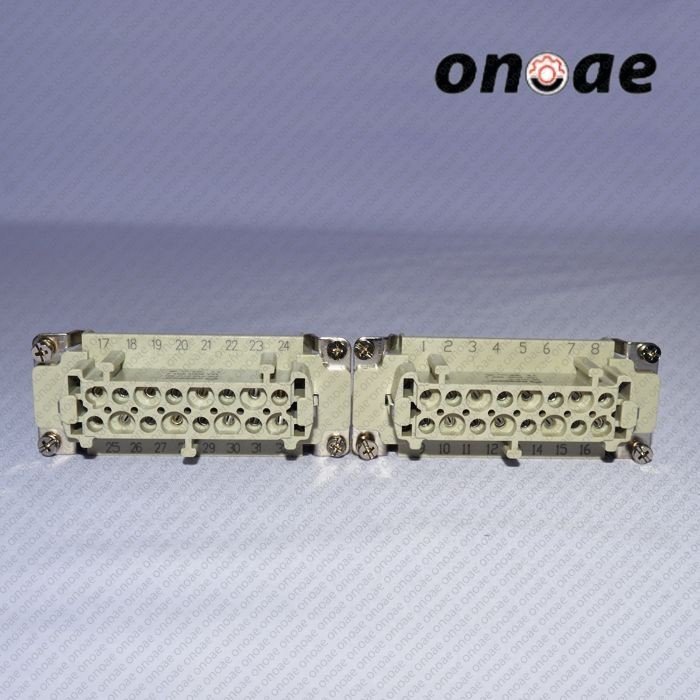

Degson DA016 Insert Female Heavy Duty Connector

Product Note:

No product notes available.

21 in stock

Description

Degson DA016 Insert Female are the part of the connector designed to hold the connector contacts in place. Connector inserts and modules are made from a moulded piece of dielectric material that fits inside a connector hood or housing. The insert is therefore the heart of the heavy-duty connector. It is responsible for electrical functioning. Currently, heavy-duty connectors are used wherever there is a need for a secure, simple and time-saving assembly of machinery and facilities.

Degson DA016 Insert Female

  • Heavy-duty insert
  • Number of contacts:16+PE
  • Dimension:16A
  • Rated voltage :250V
  • Rated current:16A
  • Female insert
  • Screw connector

Features

FITUR INSERT FEMALE DA-016-F:

  • Model: Insert Female (Perempuan)
  • Number of contacts: 16
  • Rated current: 16A
  • Rated voltage: 250V
  • Rated impulse voltage: 4KV
  • Pollution degree: 3
  • Material body: Polycarbonate
  • Material contact: Copper alloy

Applications

APLIKASI HEAVY-DUTY CONNECTOR:
Sebagai perlindungan mekanis maupun elektrik dalam lingkungan yang menuntut, seperti dalam industri mesin produksi, automotif, dan pembangkit energi, serta perlindungan dalam proses beserta kontrol aplikasi.

Specifications

SPESIFIKASI HEAVY DUTY CONNECTOR INSERT FEMALE DA-016-F:

  • Type Screw terminal
  • Wire gauge: 1.0-2.5 mm2
  • AWG: 18-14

Downloads

Data Sheet : Degson DA016 Insert Female Heavy Duty Connector
