Sale!

Original price was: Rp 44.000.000.Current price is: Rp 43.707.000.

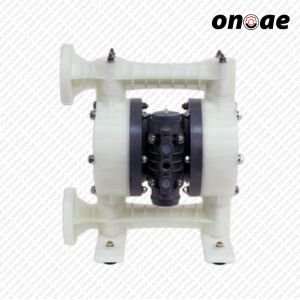

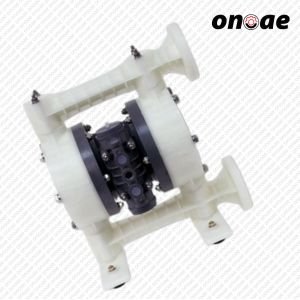

Diaphragm Pump Yamada NDP-20 BPC

Name: Diaphragm Pump Yamada NDP-20 BPC | onoae
SKU: DPYNDP20BPC
Price: 43707000 IDR
Availability: InStock

Minimum Order: 1 units

Lead Time: 18 weeks

Product Note:

No product notes available.

SKU: DPYNDP20BPC Categories: Hydraulic and Pneumatic, Mechanical Parts Tags: Diaphragm Pump Yamada NDP-20 BPC, Hydraulic and Pneumatic, Mechanical Parts

Available on backorder

Description

Description of Diaphragm Pump Yamada NDP-20 BPC

Air-powered double diaphragm pumps (AODDs) like the Yamada NDP-20BPC are made to last and operate well in a range of industrial settings. This pump is a dependable option for managing a variety of liquids because of its body design, which consists of polypropylene and neoprene diaphragms.

Features

Robust Bolted Construction: The bolted construction guarantees quick re-assembly following maintenance and prevents leaks.
Easy to Access Air Valve from the Outside: This feature enables examination and maintenance without requiring the pump to be disassembled entirely.
Applications requiring non-metallic materials can benefit from the polypropylene body’s resilience to a variety of corrosive substances.
Neoprene Diaphragm: Suitable for a variety of fluids, it provides flexibility and abrasion resistance.

Applications

Chemical Industry: The safe transportation of aggressive and caustic substances.
Pumping liquids containing solid particles or treatment chemicals is known as water and sewage treatment.
Food and Drink Sector: Fits well with liquids that need non-metallic pump components to prevent contamination.
Various liquids are transferred throughout the production process in the general manufacturing industry.

Specification

Fluid Port: 3/4” Female NPT.
Maximum Flow Capacity: 31.7 gallons per minute (120 liters per minute).
Discharge Volume per Cycle: 0.163 gallons (615 cc) for rubber diaphragm.
Air Supply Pressure: 20 to 100 PSI (1.4 to 7 kgf/cm²).
Maximum Cycles per Minute: 195 cycles.
Maximum Solid Particle Size: 1/16” (2.0 mm).
Maximum Dry Lift Suction: 18 feet (5.5 meters) for pumps with rubber diaphragms.
Maximum Liquid Temperature: 180°F (82°C) for polypropylene construction.
Pump Body Material: Polypropylene (PPG).
Diaphragm Material: Neoprene.
Valve and O-Ring Material: Neoprene.
Air Inlet: 3/8” Female NPT (including ball valve).
Exhaust Air: 3/4” Female NPT (including silencer).
Air Motor Material: Aluminum.
Dimensions: Width 12.44“ x Height 14.72”.
Net Weight: 17.6 lbs (8.0 kg).
Shipping Weight: 21.6 lbs (9.8 kg)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
