Description

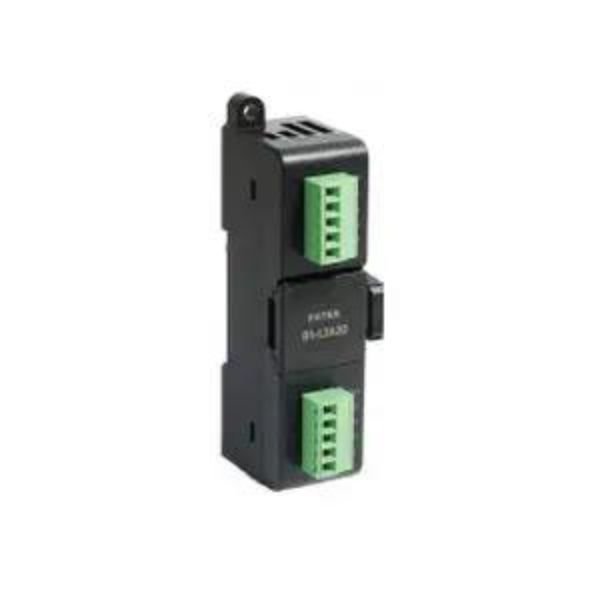

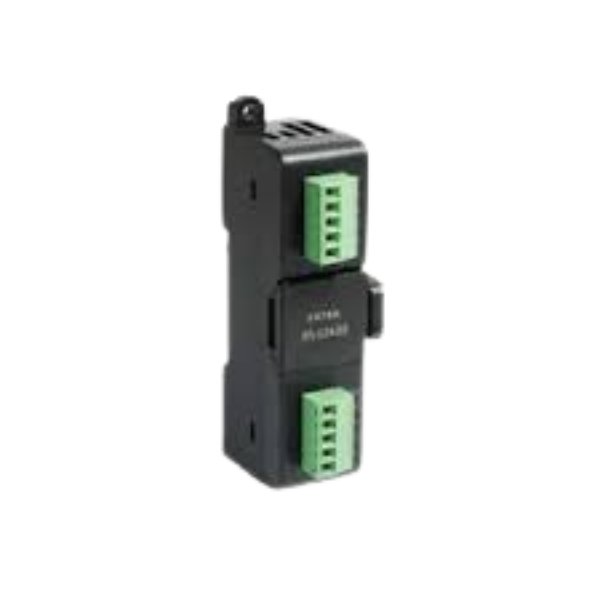

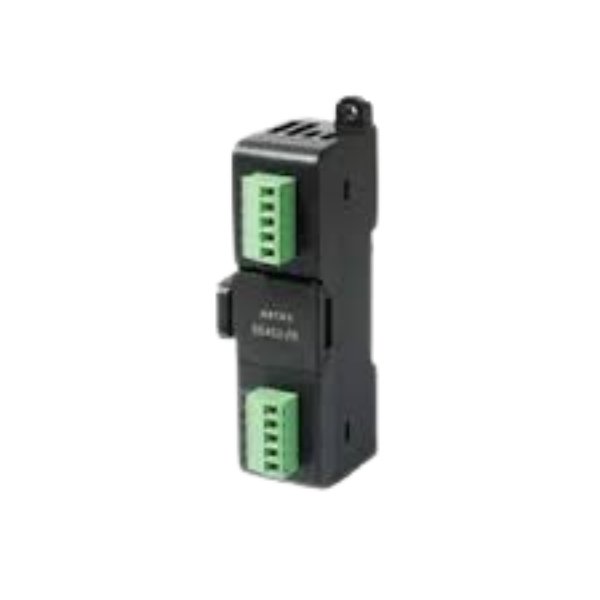

Fatek-B1-L2A2D Analog I/O Expansion Module
Fatek-B1-L2A2D Analog I/O Expansion Module is one of the analog I/O boards of FATEK FBs series PLC. For analog output, it provides 1 channel of 12-bit (coded in 14 bits) output signal. For safety, the output signal will be automatically forced to zero(0V or 0mA) when the module is not serviced by the CPU for 0.5 seconds. For analog input, it provides 2 channels of A/D inputs with 12-bit (coded in 14 bits) resolution. The Input/Output signal types (voltage or current) can be selected by the field wiring.
PLC & NC Control in one and Dedicated NC
Positioning Language
NC Position Control is incorporated into the SoC of the FBs-PLC which integrates PLC+NC control into one unit in order for resource sharing and reduces the need for data exchange. The NC position control adopts a special positioning command language, which allows programming by mechanical or electrical units and the changing control of parameters during execution. One single unit has up
to four axes outputs with a maximum frequency of 200KHz (MC) or 920KHz (MN)
and equipped with a multi-axis linear interpolation function. If combined with the
four sets of built-in HHSC, it can achieve a fully closed-loop positioning control.
