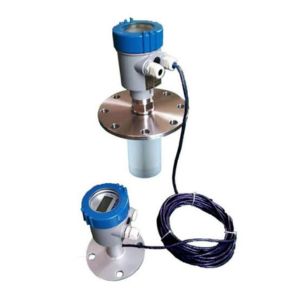

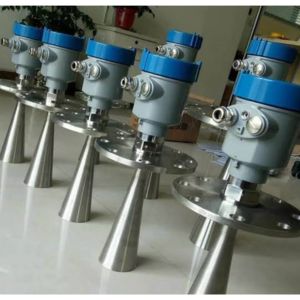

Flowma DCRD1000A Series 26GHz Radar Level Meter

Flow DCRD1000A Series 26GHz Radar Level Meter Series Radar Level Transmitter is a high-frequency level measuring instrument with a maximum measuring distance of up to 70 meters. The antenna is further optimized, and the new-type microprocessor can perform a higher rate of signal analysis and processing, making the instrument available for complex measurement conditions, such as reactors, and solid silos.

Working Principle

Radar level antenna emits narrow microwave pulses that are transmitted down by the antenna. The microwave comes into contact with the measured medium surface and then is reflected back and received by the antenna system. The signal is transmitted to an electronic circuit and partly convert to level signals (as the microwave featured high propagation speed, it’s almost instantaneous for the electromagnetic waves to reach the target and return to the receiver)

Note: When applying the radar level transmitter, make sure that the highest material level cannot reach the measurement bling spot (the territory that indicates as D)

Features

Small antenna size, easy to install; non-contact radar, no wear, no pollution.
Almost free from corrosion, foam impact; hardly affected by the change of the temperature, pressure and water vapor in the atmosphere.
Severe dust environment is not likely to affect the work of the high-frequency level meter.
Shorter wavelength can achieve better reflection for the inclined solid surface.
The small field angle and energy concentration, enhanced echo capabilities, and beneficial to avoid interference.
Minimized measuring blind spot can gain better result of small tank measurement.
High SNR, even in the case of fluctuations can result in better performance.
High frequency, the best choice to measure solids and low dielectric media.

Applications

All kinds of strong corrosive liquid, strong acid, strong base, chemical liquid
Slightly corosive liquid, sewage, petroleum, river channel, heavy steam conditions etc
Solid materials, strong dust and crystallization, condesation occasion
Long range storage container, or hangging bulk material and cristallization, condesation occasion
Solid particles, dust, reservoir, river, water level monitoring

Specifications

Model	DCRD1000A1	DCRD1000A2	DCRD1000A3	DCRD1000A4	DCRD1000A5	DCRD1000A6
Application	All Kind of strong corrosive liquid, strong acid, strong basem chemical liquid	Slightly corrosive liquid, sewage, petroleum, river channel, heavy steam conditions, etc.	Solid materials, strong dust and crystallization, Condensation occasion	Long range storage container, process container, or hanging bulk material and crystalization, condensation occasion	Solid particles, dust, reservior, river, water level monitoring	Liquid, Slurry, Condensation, Corrosive liquids.
Measuring Range	20m	30m	70m	70m	30 m	20m
Process connection	Screw thread, flange
Medium Temperature	-40~120°C	-40~250°C	-40~250°C	-40~250°C	-40~250°C	-40~150°C
Process Pressure	-0,1~0,3Mpa	-0,1~4,0Mpa	Atmospheric	Atmospheric	Atmospheric	Atmospheric
Accuracy	±5mm	±3mm	±5mm	±15mm	±10mm	±3mm
Frequency Range	26 GHz
Anti-explosion/safety grade	Exia II CT6 Ga, Exd ia II CT6 Gb / IP67
Signal Output	4~20mA/HART(Two-wire/Four-wire)/RS485/Modbus

Description

Flowma DCRD1000A Series 26GHz Radar Level Meter

Working Principle

Flowma Radar

Note: When applying the radar level transmitter, make sure that the highest material level cannot reach the measurement bling spot (the territory that indicates as D)

Features

Small antenna size, easy to install; non-contact radar, no wear, no pollution.

Almost free from corrosion, foam impact; hardly affected by the change of the temperature, pressure and water vapor in the atmosphere.

Severe dust environment is not likely to affect the work of the high-frequency level meter.

Shorter wavelength can achieve better reflection for the inclined solid surface.

The small field angle and energy concentration, enhanced echo capabilities, and beneficial to avoid interference.

Minimized measuring blind spot can gain better result of small tank measurement.

High SNR, even in the case of fluctuations can result in better performance.

High frequency, the best choice to measure solids and low dielectric media.

Applications

All kinds of strong corrosive liquid, strong acid, strong base, chemical liquid

Slightly corosive liquid, sewage, petroleum, river channel, heavy steam conditions etc

Solid materials, strong dust and crystallization, condesation occasion

Long range storage container, or hangging bulk material and cristallization, condesation occasion

Solid particles, dust, reservoir, river, water level monitoring

Specifications

Model

DCRD1000A1

DCRD1000A2

DCRD1000A3

DCRD1000A4

DCRD1000A5

DCRD1000A6

Application

All Kind of strong corrosive liquid, strong acid, strong basem chemical liquid

Slightly corrosive liquid, sewage, petroleum, river channel, heavy steam conditions, etc.

Solid materials, strong dust and crystallization, Condensation occasion

Long range storage container, process container, or hanging bulk material and crystalization, condensation occasion

Solid particles, dust, reservior, river, water level monitoring

Liquid, Slurry, Condensation, Corrosive liquids.

Measuring Range

20m

30m

70m

30 m

20m

Process connection

Screw thread, flange

Medium Temperature

-40~120°C

-40~250°C

-40~150°C

Process Pressure

-0,1~0,3Mpa

-0,1~4,0Mpa

Atmospheric

Accuracy

±5mm

±3mm

±5mm

±15mm

±10mm

±3mm

Frequency Range

26 GHz

Anti-explosion/safety grade

Exia II CT6 Ga, Exd ia II CT6 Gb / IP67

Signal Output

4~20mA/HART(Two-wire/Four-wire)/RS485/Modbus
