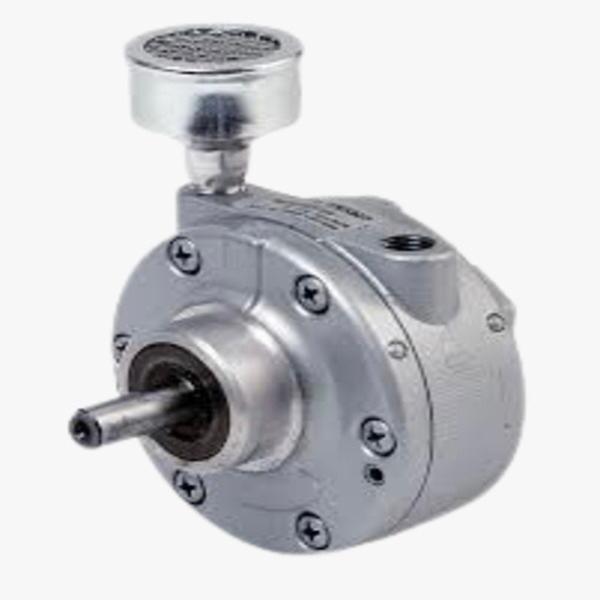

Gast 2AM-NCC-16 Air Motor

Gast 2AM-NCC-16 Air Motor The compact and portable 2AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Features

4 Vanes, CCW Rotation
Hub mounting
Any plane operation
Metal muffler AC980 adds 2″ height when installed
II 2 GD c T4

Applications

RECOMMENDED

Filter AH103F
Regulator AH104R
Gauge AA806
Lubricator AH105L
Oil AD220 – 1 quart (.94 litres)
Repair kit K202 (Single Rotation)
Repair kit K509 (Reversible)

Specifications

Max Air Consumption: 30 cfm ( 50.97 m3h )
Max Power: 0.95 hp ( 0.71 kW )
Max Pressure: 7 bar ( 101.53 psi )
Max Sound Level: 76 dB(A)
Max Speed: 3000 rpm
Max Torque: 28 in-lb ( 3.16 N m )
Mount: HUB
Output Shaft Type: Flat
Port Size and Type: 1/4″ NPT
Regulatory Approval: CE, ATEX
Rotation: Counter Clockwise
Shaft Size: 0.5 in ( 12.7 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 17.5 in-lb ( 1.98 N m )
Torque Max Speed: 19.5 in-lb ( 2.2 N m )
Vanes: 4
Weight: 4.2 lbs ( 1.91 kg )

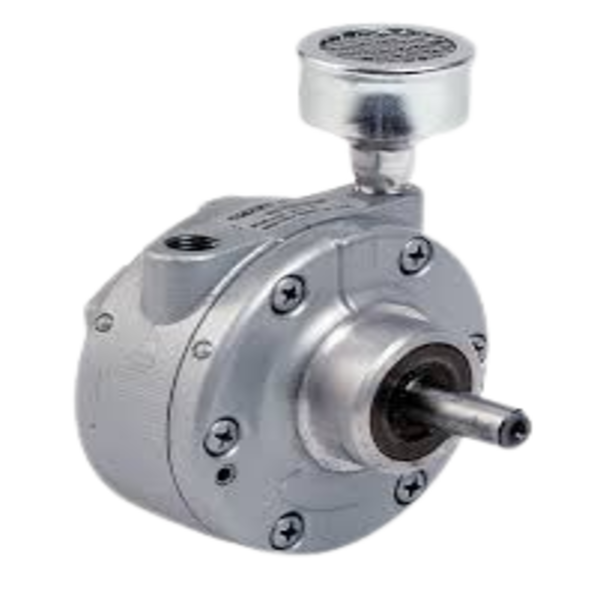

Gast 2AM-NCC-16 Air Motor
