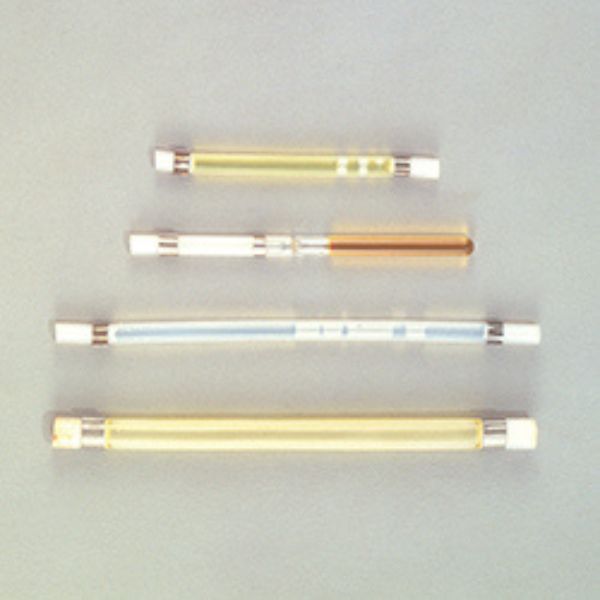

Gastec P-9-H Permeation Tube Nitrogen Dioxide

Gastec P-9-H (also cataloged as P9H) is a certified, high-emission Nitrogen Dioxide ( $\text{NO}_2$ ) permeation tube engineered as a primary trace-gas generation standard for producing known, higher-concentration span gases of nitrogen dioxide gas.

While standard-emission tubes (such as the P-9-1 model) are optimized for ultra-low trace concentrations, the H-suffix (High-emission) variant features elevated membrane permeability to deliver a higher nanogram-per-minute ( $\text{ng/min}$ ) release rate. This makes it ideal for calibrating mid-to-high range gas analyzers, verifying colorimetric detector tubes, and auditing industrial safety systems.

Specifications

Parameter	Specification
Manufacturer	Gastec Corporation
Part Number / Model	P-9-H / P9H
Target Chemical Vapor	Nitrogen Dioxide ( $text{NO}_2$ )
Emission Category	High-Emission Rate (H-series)
Permeation Membrane	Fluoropolymer (FEP/Teflon) capillary reservoir
Certified Operating Temp	$30.0^circtext{C to }40.0^circtext{C}$ (specified on factory calibration certificate)
Primary Output Range	Generates mid-to-high ppm span gas (dependent on carrier gas flow rate)
Expected Service Life	6 to 12 months (determined by operating temperature and initial fill mass)
Compatible Equipment	Gastec PD-1B / PD-1C Permeaters, standard dynamic gas diluters

Features

Concentration range 1.8 – 133 ppm

Applications

Continuous Emission Monitoring Systems (CEMS): Calibrating chemiluminescence, FTIR, and electrochemical NO2 analyzers used in power plants, industrial boiler stacks, and chemical facilities.
Colorimetric Detector Tube Audits: Laboratory verification and accuracy auditing of Gastec high-range Nitrogen Dioxide detector tubes (such as Gastec 9H and 9M series).
Industrial Safety & Process Audits: Generating precise test gas to verify alarm setpoints on fixed toxic gas detection systems in explosives manufacturing, nitric acid plants, and heavy-duty diesel test bays.
