Sale!

Original price was: Rp 8.568.000.Current price is: Rp 8.468.000.

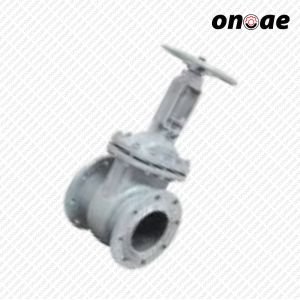

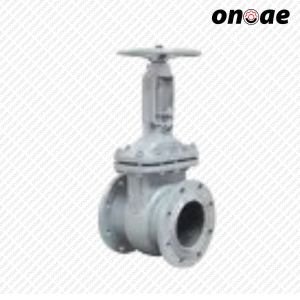

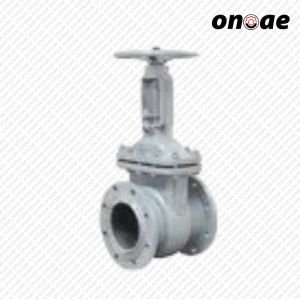

Gate Valve Ansi 150 2 inch Stainless Steel

Minimum Order: 1 units

Lead Time Note: 7 - 14 Days

Product Note:

No product notes available.

SKU: GATEVALVEANSI150SS2" Category: Tags: , ,

Available on backorder

Contact us

Description

Description of Gate Valve Ansi 150 2 inch Stainless Steel

The ANSI 150 2 Inch Stainless Steel Gate Valve is a 2-inch industrial gate valve with ANSI Class 150 standard flanged connections. Designed to control fluid flow by fully opening or closing the flow path, this valve is made of 316 stainless steel (CF8M) that offers high resistance to corrosion and extreme temperatures. With a rising stem design and Outside Screw & Yoke (OS&Y) system, this valve ensures clear visual indication of valve position and ease of maintenance.

Features

  • High Quality Material: The body and disc are made from ASTM A351 Gr. CF8M (316 Stainless Steel), providing resistance to corrosion and high temperatures.
  • OS&Y design with Rising Stem: Allows visual indication of valve position and facilitates maintenance without interrupting fluid flow.
  • Flexible Wedge: Guarantees better sealing and reduces the possibility of leakage.
  • ANSI Standard Flanged Connection: Eases integration with existing piping systems.
  • PTFE Packing: Provides effective sealing and resistance to various types of fluids.
  • Conforms to International Standards: Meets API 598 standards for testing and inspection, and NACE MR-0175 for applications in environments containing hydrogen sulfide.

Applications

This Gate Valve is suitable for use in various industrial sectors, including:

  • Chemical and Petrochemical Industries: To control the flow of corrosive chemicals.
  • Water and Sewage Treatment: As the main valve in water distribution and treatment systems.
  • Food and Beverage Industry: To ensure hygiene and corrosion resistance in the production process.
  • Oil and Gas Industry: For onshore and offshore applications that require high resistance to aggressive environments.
  • HVAC Systems: Controls flow in heating and air conditioning systems.

Specifications

  • Nominal Size: 2 inches (DN50)
  • Pressure Class: ANSI Class 150
  • Body & Disc Material: ASTM A351 Gr. CF8M (316 Stainless Steel)
  • Rod Material: SS316
  • Stem Type: Rising Stem with OS&Y
  • Wedge Type: Flexible
  • Flange Connection: ANSI B16.5
  • Face to Face: ANSI B16.10
  • Testing Standard: API 598
  • Packing: PTFE
  • Maximum Operating Temperature: Up to 425°C
  • Maximum Operating Pressure: 150 psi (10.3 bar)
