Sale!

Original price was: Rp 50.000.000.Current price is: Rp 46.953.000.

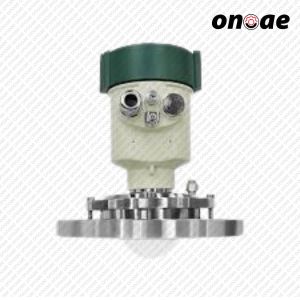

JBRD-800CD-GW Radar Level Sensor For Bitumen gauge

Minimum Order: 1 units

Lead Time: 6 weeks

Product Note:

No product notes available.

SKU: JBRD800CD-GW-RLSFBG Category: Tags: , ,

Available on backorder

Contact us

Description

JBRD-800CD-GW Radar Level Sensor For Bitumen gauge

A radar level sensor specifically made to assess bitumen levels accurately in extreme weather and high temperatures is the JBRD-800CD-GW. It can assess bitumen levels without coming into direct touch thanks to millimeter-wave radar technology, which guarantees precise readings even in the presence of extreme temperature and viscosity fluctuations. The sensor is perfect for the asphalt industry, petrochemicals, and related industries since it is made to resist the intense heat and corrosive properties of bitumen.

Features

  • Bitumen and other high-viscosity substances may be accurately measured without physical touch thanks to millimeter wave radar technology.
  • Resistance to High Temperatures: It is perfect for bitumen and other hot liquid applications since it is made to function at temperatures as high as 250°C.
  • Design to Prevent Corrosion: constructed using materials that don’t corrode, such premium stainless steel, making it appropriate for harsh settings.
  • Free of contact and upkeep: minimizes maintenance and lowers the chance of harm because it doesn’t need direct touch with the medium.
  • High Precision: Accuracy of up to ±1 mm, even under challenging measuring circumstances.
  • Adaptable Signal Output: has outputs that are compatible with RS485 MODBUS, 4-20 mA, and HART for simple integration with industrial control systems.
  • Tolerance for Vapor and Dust: operates effectively even when there is dust or liquid bitumen vapor present.

Applications

  • Various shapes of chemical tanks or mixing tanks
  • Incinerator
  • Small or large storage tank
  • Narrow environment or guided wave pipeline measurement
  • High-precision metering applications

Specification

  • Model Number: JBRD-800CD-GW
  • Customized support: OEM, ODM, OBM, Software reengineering
  • Transmission frequency: 76GHz~81GHz, 5GHz FMCW bandwidth
  • Working temperature: -40°~220°
  • Specifications: 80G conventional large lens universal blowing
  • Application scope: Strong dust, solid, block, powder, etc
  • Measuring range: 15m 35m 85m 120m
  • Measurement accuracy: ±1mm
  • Signal Output: 4-20mA HART (two wire/four wire), RS485/Modbus
  • Type: Non-contact
  • Pressure range: -0.1~0.3MPa
  • Protection grade: IP68
  • Material: Stainless Steel/Aluminum alloy
  • Purging hole: Support, Cleaning dust
  • Recommended cables: 0.75mm²
  • Explosion proof level: Ex d ia IIC T6 Gb
