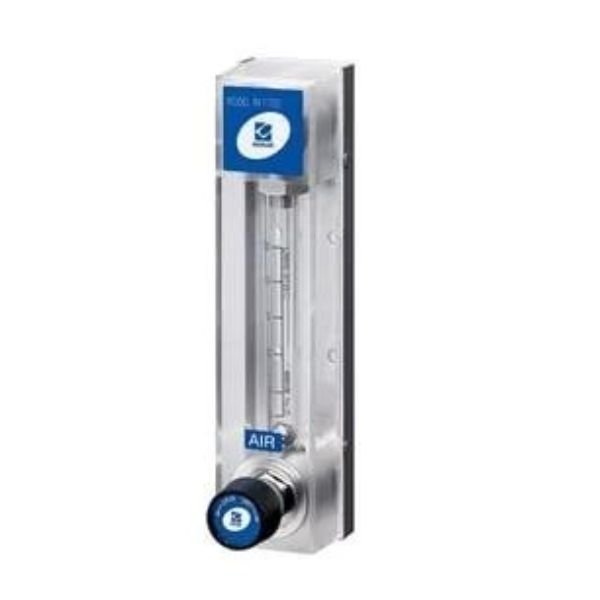

Kofloc Model RK1700 Low-cost Flowmeter

Kofloc Model RK1700 Low-cost Flowmeter centers the focus on cost reduction using SUS 316 as the material of construction. This flowmeter covers flow ranges from 1 L/MIN to 50 L/MIN and can be shipped in one week after the customer’s purchase order.

Kofloc Model RK1700 Low-cost Flowmeter centers the focus on cost reduction using SUS 316 as the material of construction. This flowmeter covers flow ranges from 1 l/min to 50 l/min and can be shipped in one week after the customer’s purchase order.

Kofloc RK1700 Features :

– Very reduced price
– One-week delivery
– Compact design

Applications :

– The operating temperature is 20°C (at atmospheric pressure).
– The needle is located at the bottom. (Standard specification)
– Supply pressure, standard: 0.1 MPa to 0.3 Mpa

Standard Specifications Kofloc RK1700 :

  • Flow range (Full scale) : 1L, 5L, 10L, 30L, 50L/MIN (AT20°C)
  • Fluids: Use for Air, N2, and O2 exclusively
  • Accuracy: FS±7%
  • Available scale: 10:1
  • – Proof pressure: 0.5Mpa
  • Materials:
  • SS: SUS 316, Pyrex, FKM, SUS 304, SUS 303, glass
  • BS: Brass, Pyrex, NBR, SUS303, glass
  • Temperature Resistance: MAX. 60°C

Features

  • Very reduced price
  • One-week delivery
  • Compact design

Applications

  • Operating temperature is 20°C (at atmospheric pressure).
  • The needle is located at the bottom. (Standard specification)
  • Supply pressure, standard: 0.1 MPa to 0.3 MPa

Specifications

Flow range (Full scale) 1L, 5L, 10L, 30L, 50L/MIN
(AT20℃)
Fluids Use for Air, N2 and O2 exclusively
Accuracy FS±7%
Available scale 10:1
Proof pressure 0.5MPa
Materials SS: SUS 316, Pyrex, FKM, SUS 304, SUS 303, glass
BS: Brass, Pyrex, NBR, SUS303, glass
Temperature resistance MAX. 60℃
Connection Rc1/4

Notes

  • Operating temperature is 20°C (at atmospheric pressure).
    • The needle is located at the bottom. (Standard specification)
    • Supply pressure, standard: 0.1 MPa to 0.3 MPa

Downloads

Datasheet: Kofloc Model RK1700 Low-cost Flowmeter
