Sale!

Original price was: Rp 8.684.000.Current price is: Rp 8.584.000.

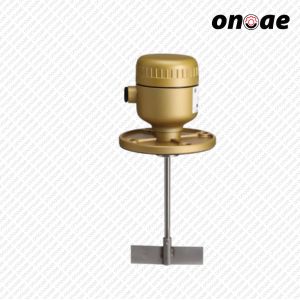

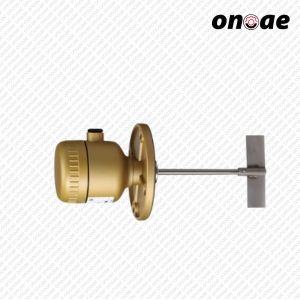

Level Switch Parker JC7-SD 250mm

Name: Level Switch Parker JC7-SD 250mm | onoae
SKU: LEVELSWITCHPARKERJC7-SD250MM
Price: 8584000 IDR
Availability: InStock

Minimum Order: 1 units

Product Note:

No product notes available.

SKU: LEVELSWITCHPARKERJC7-SD250MM Categories: Level Measurement, Level Switch Tags: Level Measurement, Level Switch, Level Switch Parker JC7-SD 250mm

Available on backorder

Description

Description of Level Switch Parker JC7-SD 250mm

JC7-SD is a rotary paddle type level switch of Parker Hannifin’s JC7 series, used to detect the level of solid materials such as flour, granula, powdered materials, grains, and powders. Using a small motor of ~6 RPM speed to rotate the paddle, when the paddle is hit by the material, it stops and triggers the microswitch contacts for level signal. Designed for extreme conditions and outdoor installation

Features

6 RPM (±10 %) synchronous motor with low consumption (~3 W)
Two-wing paddles (SD model) provide high sensitivity for rough materials.
Weather-resistant aluminum housing; heat-resistant option available up to 120 °C
Contact output 3 A @ 250 VAC, suitable for direct signals or relays
Paddle torque 500-1000 g-cm, strong enough for heavy materials
Detection rod 250 mm (length from flange to paddle), customizable up to 3000 mm.

Applications

Level detection in industrial solid material silos, hoppers, and bunkers.
Avoiding overfill or machine damage due to lack of materials.
Raw material dosing or extraction system for manufacturing processes.
Suitable in food, agriculture, plastic, pharmaceutical, and construction industries.

Specifications

Model JC7-SD (rotary paddle, 2 wings)
Detection Rod 250 mm (standard model), adjustable length 100-3000 mm
Operating Voltage 110 V or 220 V AC (50/60 Hz)
Power Consumption ~3 W when paddle is rotating
Paddle Speed 6 RPM
Paddle Torque 500-1000 g-cm
Contact Capacity 3 A @ 250 VAC
Detection Media Grain, flour, granules, powders, sand, plastic seeds
Operating Temperature 0-60 °C (standard), up to 120 °C (heat resistant option)
Housing Material Weatherproof and outdoor aluminum
Protective Option Protective rod for extreme conditions
