Name: Magnetic Level Gauge Float & Board Type Level Indicator UHZ-99C Tank 8 meter | onoae
SKU: MAG-UHZ99C
Price: 159732000 IDR
Availability: BackOrder

Description

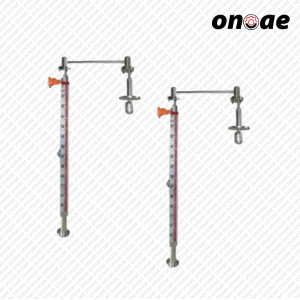

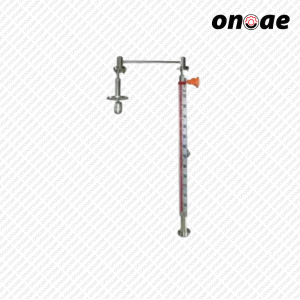

Magnetic Level Gauge Float & Board Type Level Indicator UHZ-99C Tank 8 meter

The UHZ-99C Magnetic Float & Board Type Level Indicator is a mechanical level measuring device designed specifically for chemical liquid applications in vertical storage tanks. This model is configured for a tank height of 8 meters

Specifications

Apllication : Liquid chemical
Model : UHZ-99C
Height Tank : 8 Meter
C-C : 6900mm
Meansure Range : 2-7m
Scale Board : TYpe (unit:meter) Std.
Material Body : SS304
Slide and Top Connection : Flange ANSI 2″, 150#RF

Features

Visual level indication using a magnetic float and mechanical flap board.
Flaps change color (e.g., red/white or red/green) based on liquid level, offering clear visibility.
Customized measuring range from 2 to 7 meters, ideal for an 8-meter tank.
SS304 body suitable for a wide range of chemical liquids.
Optional upgrade to SS316 or PTFE-lined for aggressive chemicals.
Operates mechanically, perfect for remote or hazardous locations where power is limited or unavailable.

Applications

For monitoring corrosive liquids, acids, alkalis, solvents, and chemical mixtures in storage or reaction tanks.
Used to measure the level of oil, fuel, diesel, and high-viscosity or hazardous liquids in industrial tanks.
Monitoring of solvents, process liquids, and chemical reagents in pharmaceutical production.
For level indication in feedwater tanks, condensate tanks, or chemical dosing tanks.
etc.
