Original price was: Rp 884.600.Current price is: Rp 788.000.

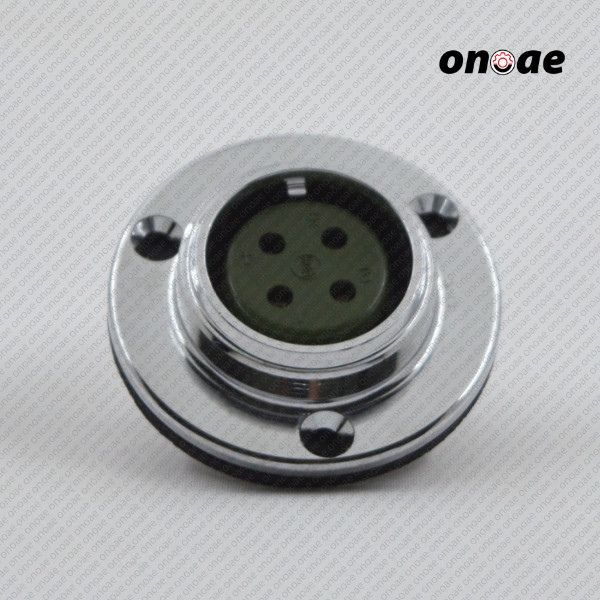

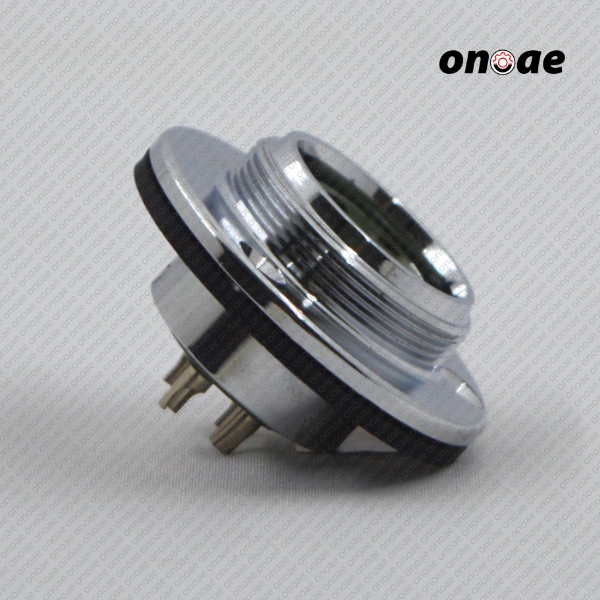

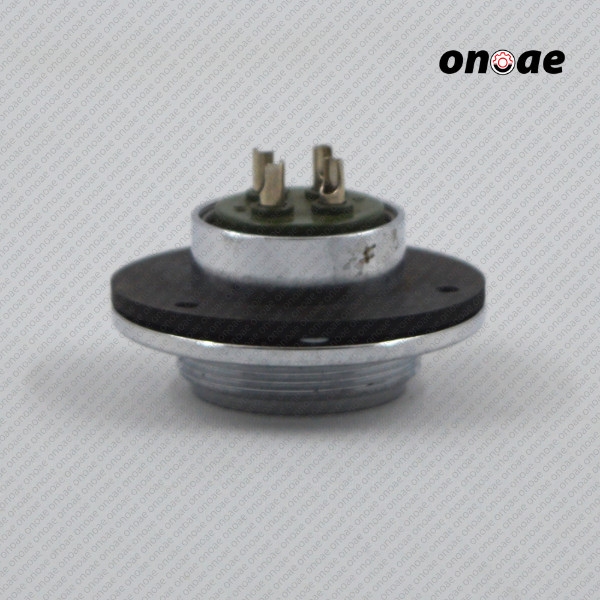

Nanaboshi NWPC 254 R Circular Connector

Product Note:

No product notes available.

1 in stock

Description

Overview

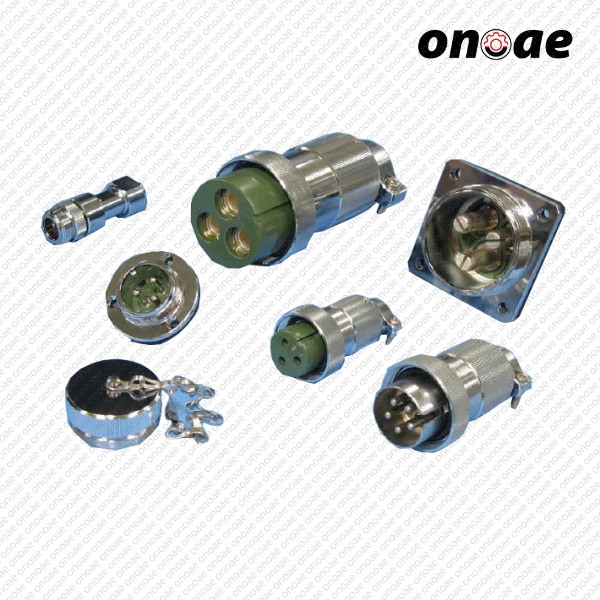

NWPC series round connector with IP-X6 equivalent water resistance. Waterproof connectors based on NCS Series, Shell Treated by brass and chrome plating, Robust and highly resistant to salt damage to make these connectors suitable for a wide variety of fields including civil engineering and construction machines, emergency power supply systems and ships. There are a number of size variations.

Features

  •  RoHS Directive compliant
  •  Waterproof connector fuction equivalent to IP-X6 when coupled
  •  Thread Lock
  •  Shell of brass treated by chrome plating to offer superior corrosion resistance
  •  Cable draw-out part provided with cable clamp to ensure firm cable holding (size 14 excluded)
  •  Standard certified connectors available. (CSA : C22.2 No.182.3 UL:1977)
  •  Cable termination : Soldering

Applications

Can be applied to a wide range of uses; ten shell sizes and a number of connectors are available

Specifications

  •  Type: Receptacle
  •  Contact Type: Male
  •  Size: 25
  •  Number of contact: 4 pin
  •  Rating: 250V 10A
  •  Withstand Voltage: 2,000 V r.m.s.
  •  Wire Size:2 mm^2
