Name: PNY - 45 (45 x 55 x 6.5) Sakagami | onoae
SKU: PNY-45(45x55x6.5)SAKAGAMI
Price: 439000 IDR
Availability: InStock

Description

Description of PNY – 45 (45 x 55 x 6.5) Sakagami

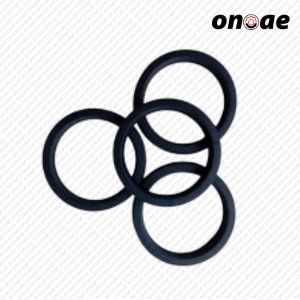

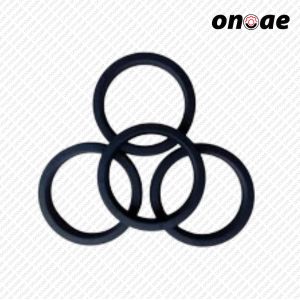

The PNY-45 is a pneumatic/hydraulic rod packing (rod seal) from Sakagami, designed for high wear and maintaining a stable seal on cylinders—whether in lubricated, non-lubricated, or dry air conditions.

Features

NBR RN713 (replaced by RN729) wear-resistant material, suitable for repetitive operations and varied environments.
Thick cross-section of 6.5 mm, supporting radial tolerance and high durability.
Hardness 74 JIS Hs, low elongation 2.5%, providing a strong and stable seal.
Withstands pressure up to 1 MPa, shaft speed up to 1 m/s.
Operating temperature range from –15 °C to +60 °C, suitable for NBR environments.

Applications

Used as rod seals in industrial pneumatic and hydraulic cylinders.
Suitable for CNC machines, presses, and industrial equipment with high movement.
Effective without extra lubrication—safe for use in dry air systems.
Commonly found in packaging machines, robotic arms, and press tools.
