Rheonik RHE 26 Panel DIN Rail Mount Flow Transmitter With highly accurate measurement performance and extreme capabilities, Rheonik meters are a natural choice for many applications and quickly provide payback through improved product quality and greatly reduced maintenance. Whether used for the transfer, batching, process feed, or control, Rheonik meters can provide online flow and density measurement.
Description of Rheonik RHE 26 Panel DIN Rail Mount Flow Transmitter

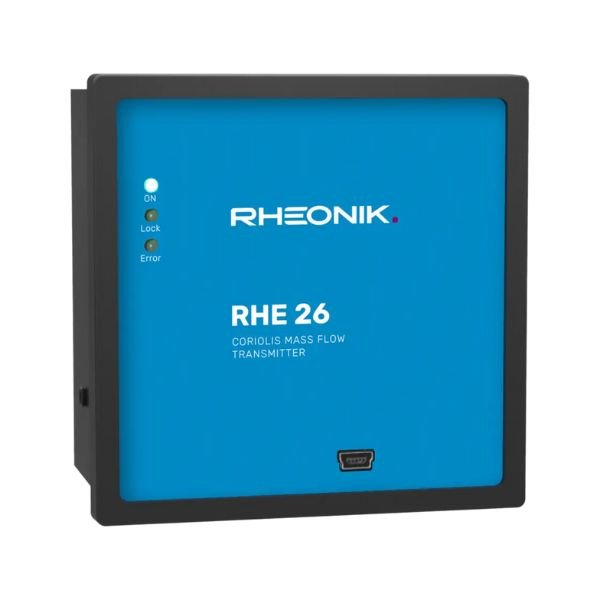

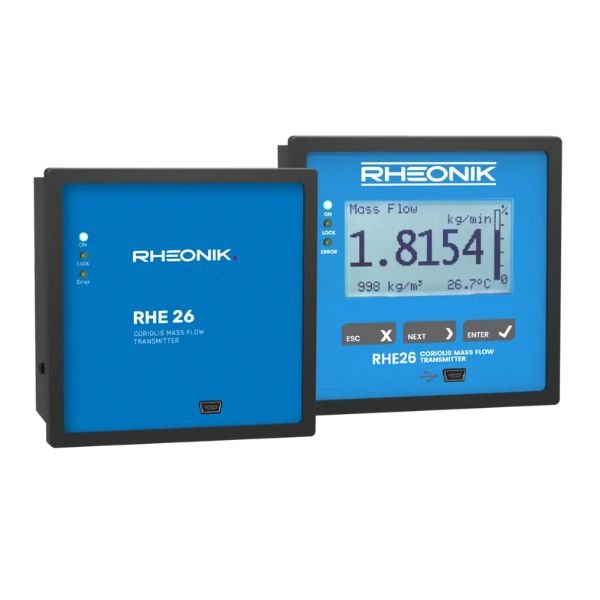

Rheonik RHE 26 Panel DIN Rail Mount Flow Transmitter A small footprint, low cost transmitter designed for rack, panel or DIN rail mounting in an indoor or enclosure environment.
Measures Mass Flow, Volumetric Flow, Density and Temperature
Outputs 1 x Analog, 2 x Frequency/Pulse/Status
Inputs 2 x Digital, 1 x Analog
PC USB for RHECom, RS 485 for Modbus RTU

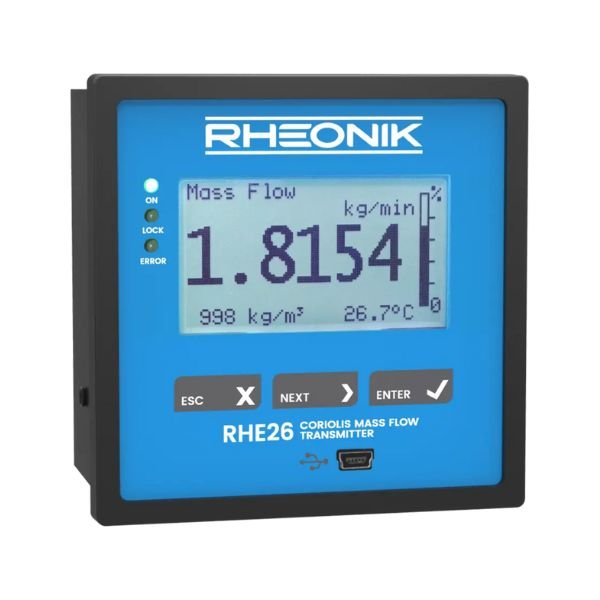

Optional Backlit Color LCD
ATEX/IEC Ex approved
Rheonik Assurance Factor
Features
• Rack/Panel/Rail Mounting
• Operate with RHM sensor in hazardous area
• Selectable Units for Mass, Volume, Density and Temperature
• Positive, negative and net totalizers for both volume and mass flow
• Two configurable pulse/frequency/status outputs
• Analog output configurable for Mass, Volume, Density or Temperature
• Digital input configurable for zeroing, measurement hold and totalizer operations
• Connectivity to control systems through Modbus RTU
• Simple user interface – Back Lit Color LCD display and 3 operator buttons with intuitive menu design
• USB connection for quick service & settings
• Built-in Assurance View• Advanced Diagnostic Set -simple publication of measurement status with Assurance Factor• and/or color changing display
• Password Protected Setup
• Upload and download of configuration files
• Power consumption less than SW
• Optional lockable front cover
Applications
• General process flow measurement
• Feed stocks and transfers
• OEM applications
