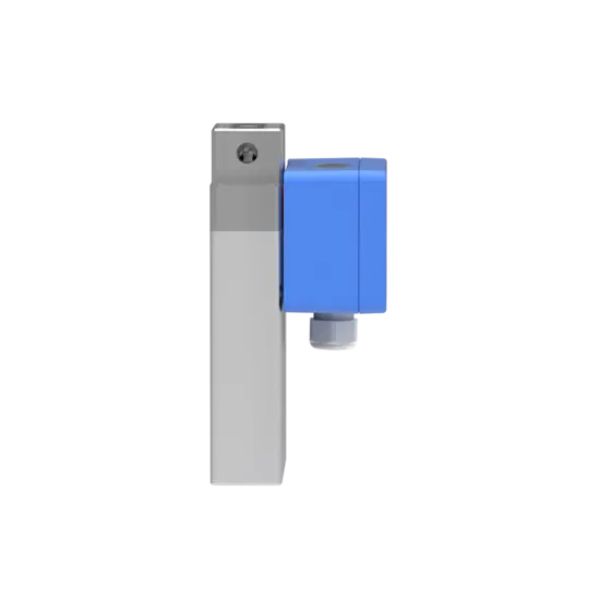

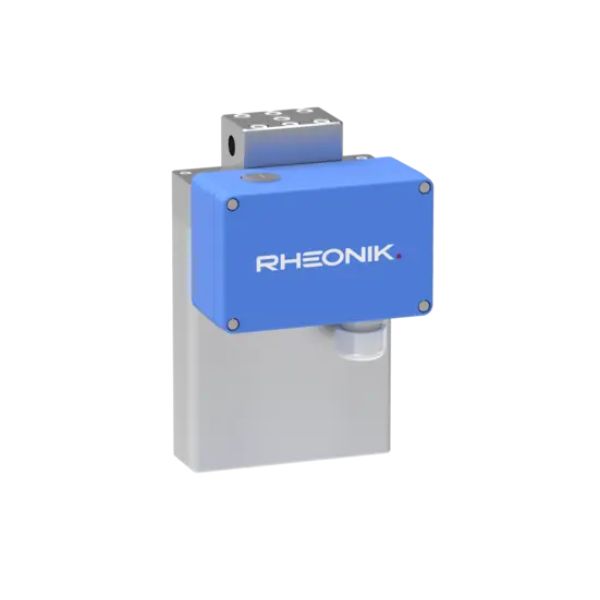

Rheonik RHM03 Coriolis Mass Flow Meter

Rheonik RHM03 Coriolis Mass Flow Meter is available with a wide selection of wetted materials and the highest pressure and temperature ratings in the market. It is suitable for all low-flow applications where high accuracy is a must.

Range: 0.03 kg/min up to 7.5 kg/min
Pressure: up to 1311 bar (19014 psi)
Temperature: -196°C (-321°F) up to +210°C (410°F)
Accuracy: 0.1 % of the rate
Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410
Process Connection: ¼” up to 1″

Features

Typical measuring range up to 7.5 kg/min (16.54 lb/min)
Pressure ratings up to 1311 bar (19014.54 psi)
Temperature ratings from -196 to +210°C (-320 to +410°F) – extended on request
Mass flow uncertainty down to 0.05 %
Repeatability down to 0.05 %
4 kHz measurement updates and response time of less than 10 ms when used with RHE 40 Series transmitters
Accurately measure flow rates down to 40 g/min
The Rheonik AnyPipeFit Commitment provides custom process connection type and size flexibility on any meter to suit your existing plant, saving time and expense on installation costs
Compact design with minimal pipeline footprint
Approved for use in hazardous areas
SS 304 Stainless steel enclosure, SS 316 optional
Integral and remote transmitter versions available

Applications

Small Size Sensors,
Chemical Injection,
Fuel Consumption,
Oil Measurement,
Painting/Coating Lines,
Plastics Production

Specifications

Nominal Flow (Qₙₒₘ)*	5 kg/min (11 lb/min)
Maximum Flow (Qₘₐₓ)*	7.5 kg/min (16.5 lb/min)
Typical Minimum Flow (Qₘᵢₙ)*	0.04 kg/min (0.88 lb/min)
Serial Tube / Single Path	Flow rates Qmax, Qnom and Qmin for “serial” sensors will be 50% of the above listed parallel/dual path version.
Operating Temperature	Fluid temperature range options cover from -196 °C to +210 °C (-320 °F to +410 °F) For integral transmitter versions please refer to transmitter datasheet
Ambient Temperature	-50 °C to +80 °C (-60 °F to +180 °F). High temperature version for oven installation up to +350 °C (+662 °F) available
Pressure Ratings	Up to 1311 bar / 19014,45 psi – dependent upon material
Electrical Connection Sensor w/o Integral Transmitter	M20 x 1.5 standard cable entry for JM, SM terminal box versions Optional entries available : ½” NPT or M25 x 1.5 (only for SM) or ¾” NPT (only for SM) M16 x 1.5 standard cable entry for PM terminal box version Max. cable length to remote RHE transmitter 100 m/330 ft.
Sensor Enclosure Materials	Stainless steel 304 (standard), SS 316 (optional) Coated aluminum terminal box, SS 316 terminal box (optional)
Enclosure Type	Protection class IP 66, NEMA 4 (standard), IP 66/67, NEMA 4X (optional)
Wetted Materials	Flow tubes SS 316L or SuperDuplex Manifolds SS 316L, seals FKM, FFKM, FVMQ Standard flanges SS 316Ti, other connections SS 316L Additional/customer specific materials available upon request
Process Connections	Nearly any – the Rheonik AnyPipeFit Commitment. Consult factory for types/sizes not listed in this data sheet on the Mechanical Construction pages
Pressure Rating Compliance	PED 2014/68/EU Article 4, Section 3 (SEP)
Certifications and Approvals	ATEX / IECEx Approvals Zone 0, 1, 2 (details see page 18) North American Approvals Cl. I, Div. 1, 2, Gr. A, B, C, D, Zone 0, 1, 2 American Bureau of Shipping (ABS) Product Type Approval for use on marine vessels
Testing and Inspection	All sensors are hydro tested, calibrated and supplied with a traceable calibration certificate. Customized calibration and testing services are available
Project Documentation and QA, Services	Rheonik offers a full set of services for large and complex engineering projects. Typical services offered are, but not limited to:•Certificates of origin and conformity, mill certificates•Data books including WPAR, WQS, NDT, test & quality plans, functional testing, calibration procedures, customized packing, factory acceptance etc. •Painting to project specification •Start up and commissioning services on/offshore
Options	Customization services for machine integration. Consult factory

* At Qₙₒₘ pressure drop across a parallel tube sensor will be approximately 2 bar (29 psi) for H₂0. Sensors can be operated at higher flow rates up to Qₘₐₓ but pressure drop will be higher. Typical Minimum Flow Qₘᵢₙ is the recommended lowest flow rate for an accurate measurement. Sensors will measure flow rates lower than Qₘᵢₙ but uncertainty will increase beyond 1 % of rate.

The flow rate specifications above relate to standard pressure, parallel tube, manifold sensor versions. Models with higher pressure ratings have increased wall thickness and will have higher pressure drops.
