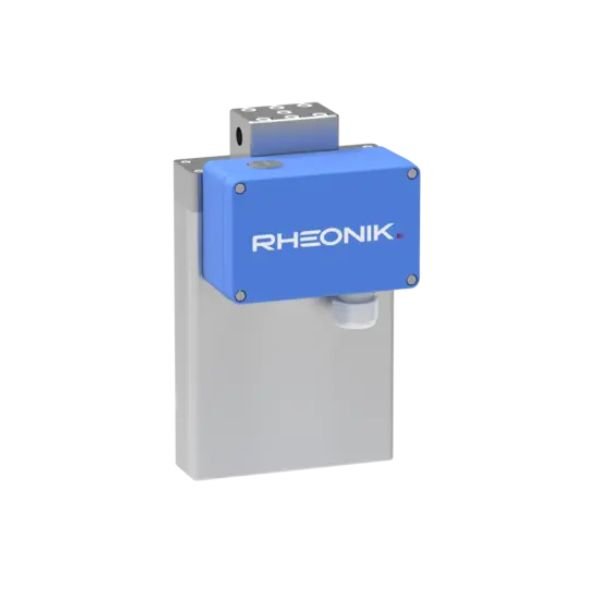

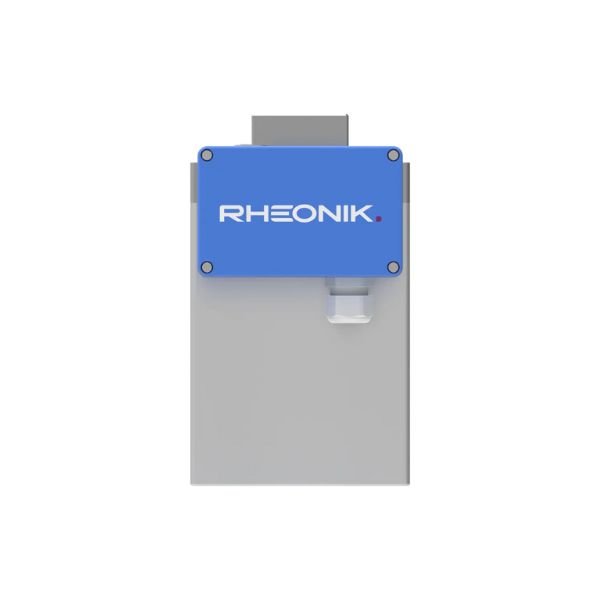

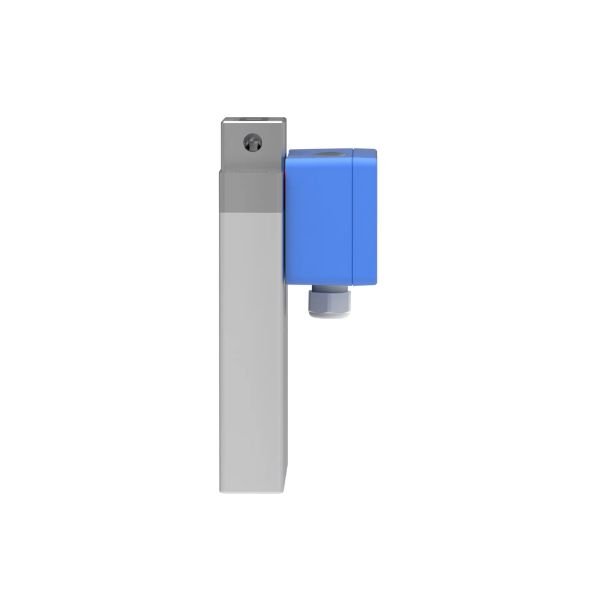

Rheonik RHM04 Coriolis Mass Flow Meter dispensing, and filling applications. Very high-pressure ratings allow deployment in processes where Coriolis meter use has not been possible in the past.

Description of Rheonik RHM04 Coriolis Mass Flow Meter

is a fast response solution for batching, dispensing and filling applications. Very high pressure ratings allow deployment in processes where Coriolis meter use has not been possible in the past.

Range: 0.05 kg/min up to 18 kg/min
Pressure: up to 1401 bar (20319 psi)
Temperature: -196°C (-321°F) up to +210°C (410°F)
Accuracy: 0.1 % of rate
Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410, Sandvik HP160
Process Connection: ¼” up to 1″
CONFIGURE

Features

Typical measuring range up to 18 kg/min (39.68 lb/min)
Pressure ratings up to 1401 bar (20319.79 psi)
Temperature ratings from -196 to +210 °C (-320 to +410°F) –extended on request
Mass flow uncertainty down to 0.05 %
Repeatability down to 0.05 %
4 kHz measurement updates and response time of less than 10 mswhen used with RHE
40 Series transmitters
Accurately measure flow rates down to 50 g/min
The Rheonik AnyPipeFit Commitment providescustom process connection type and size flexibility on any meter to suit your existing plant, saving time and expense on installation costs
Compact design with minimal pipeline footprint
Approved for use in hazardous areas
SS 304 Stainless steel enclosure, SS 316 optional
Integral and remote transmitter versions available

Applications

General Flow Control
High Pressure Gas Dispensing
Additive Dosing
Mixing and Batching
Chemical Injection
Package and Container Filling
Polyurethane, Paint, Adhesives

Specifications

Nominal Flow (Qₙₒₘ)*	12 kg/min (26.46 lb/min)
Maximum Flow (Qₘₐₓ)*	18 kg/min (39.68 lb/min)
Typical Minimum Flow (Qₘᵢₙ)*	0.06 kg/min (0.13 lb/min)
Serial Tube / Single Path	Flow rates Qmax, Qnom and Qmin for “serial” sensors will be 50% of the above listed parallel/dual path version.
Operating Temperature	Fluid temperature range options cover from -196 °C to +210 °C (-320 °F to +410 °F) For integral transmitter versions please refer to transmitter datasheet
Ambient Temperature	-50 °C to +80 °C (-60 °F to +180 °F). High temperature version for oven installation up to +210 °C (+410 °F) available
Pressure Ratings	Up to 1401 bar / 20319.79 psi – dependent upon material
Electrical Connection Sensor w/o Integral Transmitter	M20 x 1.5 standard cable entry for JM, SM terminal box versions Optional entries available : ½” NPT or M25 x 1.5 (only for SM) or ¾” NPT (only for SM) M16 x 1.5 standard cable entry for PM terminal box version Max. cable length to remote RHE transmitter 100 m/330 ft.
Sensor Enclosure Materials	Stainless steel 304 (standard), SS 316 (optional) Coated aluminum terminal box, SS 316 terminal box (optional)
Enclosure Type	Protection class IP 66, NEMA 4 (standard), IP 66/67, NEMA 4X (optional)
Wetted Materials	Flow tubes SS 316L, Sandvik HP160 or SuperDuplex Manifolds SS 316L, seals FKM, FFKM, FVMQ Standard flanges SS 316Ti, other connections SS 316L Additional/customer specific materials available upon request
Process Connections	Nearly any – the Rheonik AnyPipeFit Commitment. Consult factory for types/sizes not listed in this data sheet on the Mechanical Construction pages
Pressure Rating Compliance	PED 2014/68/EU Article 4, Section 3 (SEP)
Certifications and Approvals	ATEX / IECEx Approvals Zone 0, 1, 2 (see page 19) North American Approvals Cl. I, Div. 1, 2, Gr. A, B, C, D, Zone 0, 1, 2 OIML, MID custody transfer approval American Bureau of Shipping (ABS) Product Type Approval for use on marine vessels
Testing and Inspection	All sensors are hydro tested, calibrated and supplied with a traceable calibration certificate. Customized calibration and testing services are available
Project Documentation and QA, Services	Rheonik offers a full set of services for large and complex engineering projects. Typical services offered are, but not limited to: •Certificates of origin and conformity, mill certificates •Data books including WPAR, WQS, NDT, test & quality plans, functional testing, calibration procedures, customized packing, factory acceptance etc. •Painting to project specification •Start up and commissioning services on/offshore
Options	Customization services for machine integration. Consult factory

* At Qₙₒₘ pressure drop across a parallel tube sensor will be approximately 1.6 bar (23.2 psi) for H₂0. Sensors can be operated at higher flow rates up to Qₘₐₓ but pressure drop will be higher. Typical Minimum Flow Qₘᵢₙ is the recommended lowest flow rate for an accurate measurement. Sensors will measure flow rates lower than Qₘᵢₙ but uncertainty will increase beyond 1 % of rate.

The flow rate specifications above relate to standard pressure, parallel tube, manifold sensor versions. Models with higher pressure ratings have increased wall thickness and will have higher pressure drops.
