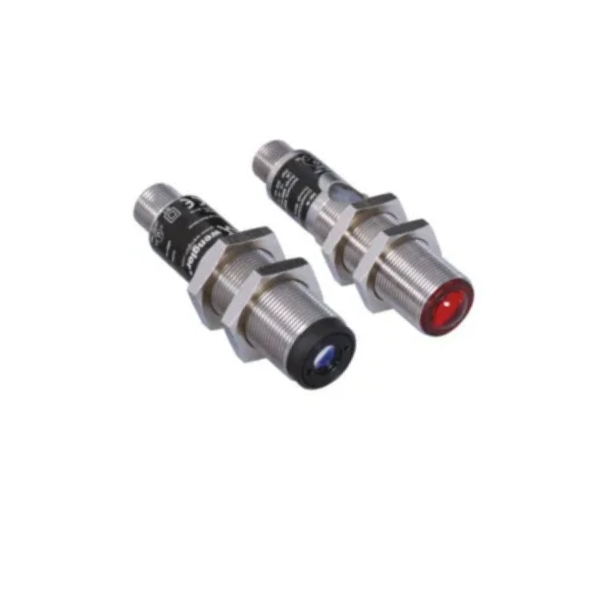

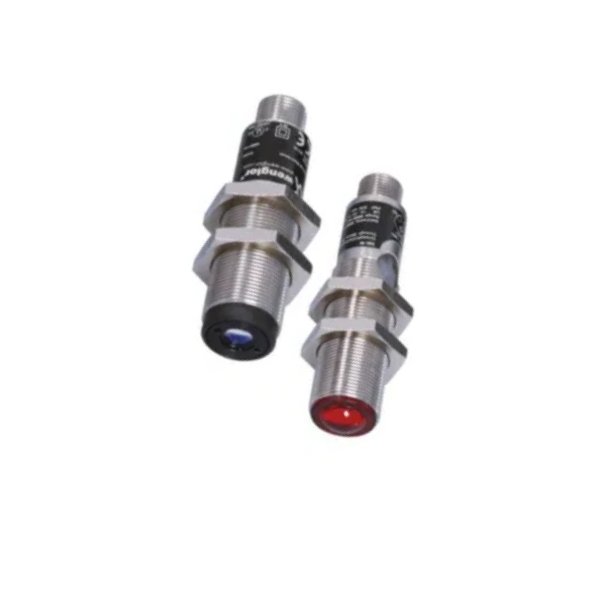

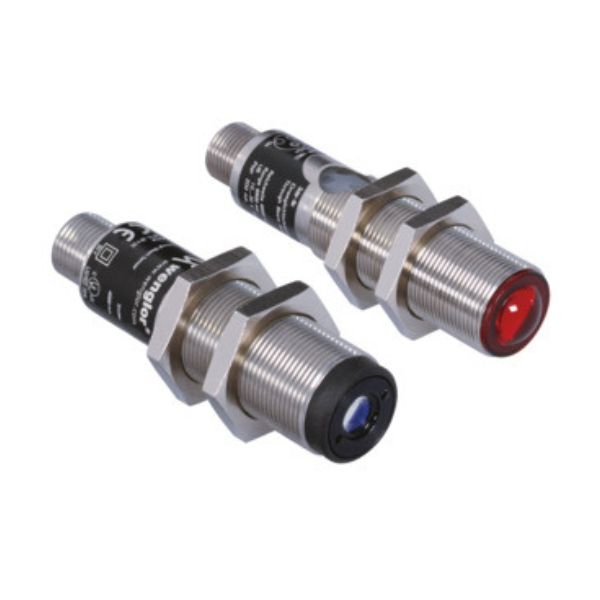

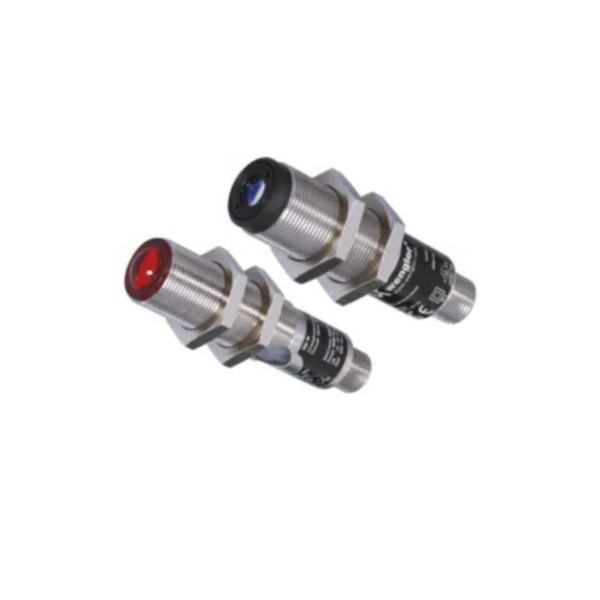

Wenglor OSD404Z0003 Through Beam Sensor

Product Note:

No product notes available.

Description

Wenglor OSD404Z0003 Through Beam Sensor These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

 Wenglor OSD404Z0003 Through Beam Sensor

  • Floor or wall mounting possible
  • Mechanical protection against damages
  • Quick and easy alignment through innovative mounting
  • The wenglor protection column offers optimal protection for safety light curtains and multi-beam safety light arrays in rough surroundings. When combined with floor mounting, this enables free-standing mounting. The wall mounting is suitable for stable horizontal mounting at standard profiles. The integrated water level enables an intuitive adjustment. A quick and precise axial and vertical alignment can be made with a few quick hand grips.
  • Mechanical Data
  • Housing Material: Aluminum
  • Disk Material: Polycarbonate
  • Cable subway: bottom/top
  • Installation Space (EBR): 2153 mm
  • Mounting Bracket, Floor or Wall Mounting are required for mounting (not included in delivery)

Features

  • Adjustable focus
  • Range: 40 m

Applications

B_BEM_ZD6003_01.tif
Dimensions specified in mm (1 mm = 0.03937″)
1 = Transmitter DiodeB_SYM_SCHLUESSEL_24.pdfWrench Size

Specifications

Optical Data

Range40,000 mm
Light SourceLaser (red)
Wavelength655 nm
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)1
Beam Divergence0.5 mrad

Electrical Data

Sensor TypeEmitter
Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 15 mA
Temperature Drift< 10 %
Temperature Range-25 … 60 °C
Reverse Polarity Protectionyes
Protection ClassIII
FDA Accession Number1120742-000

Mechanical Data

Housing MaterialStainless Steel
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Safety-relevant Data

MTTFd (EN ISO 13849-1)3,715.77 a

Downloads

Datasheet : Wenglor OSD404Z0003 Through Beam Sensor
